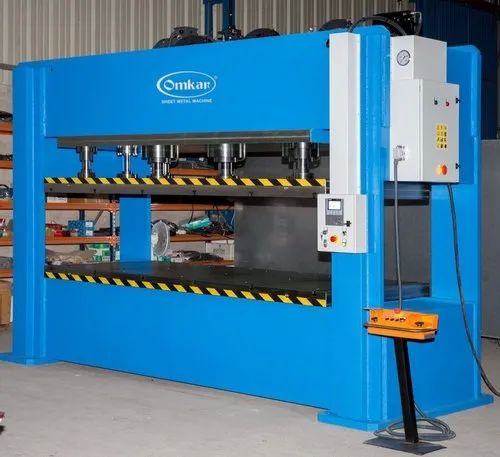

Manual Hydraulic Fix Frame Machine, Color : Blue, Green Grey

FRAME CONSTRUCTION:
Frame Is Fabricated From IS-2062 Graded Rolled Steel Plates Table And Cutting Beam Is Deeply Reinforced And Fines Machines After Stress Reliving. The Interlocked Design Put The Direct Support To Frame. This Frame Is Strain Free And Eliminates Welds At Load Supports. Thus The Accuracy Of The Machine Is Never Disturbed.

TABLE & SLIDE (RAM):
Table And Slide Are Made Of High Grade Heavy Duty Cast Iron / Steel Fabricated And Properly Seasoned. They Are Perfectly Aligned, To Each Other To Obtain High Accuracy And Precession Press Operation.

CYLINDER:
The Cylinder Bodies Are Precisely Made From Forged Steel Material Duly Bored And Fine Honed For Long Sealing Life. The Piston Rods Are Made From EN – 8 Material Having Low Carbon Contents. The Piston Rod Is Hard Chrome Platted (100 Micron).

HYDRAULIC SYSTEM:
The Compact Blocks Eliminate The Leakage Chances And Also Reduces The Hydraulic Pipes. This Low Noise Hydraulic System Is Placed On The Rear Side Of Machine, On Top Between Two Side Plates. Pressure Relief Value Is Provided To Safe Guard The System And Machine From Overload. The Hydraulic System Is Driven By An Electric Motor Of Reputed Brand And Is Coupled With A Pump Capable Of Generating More Than The Required Pressure. Pressure Gauge For System Pressure, Back Pressure And Holding Pressure Are Providing On Top Of Oil Tank For Quick Reference.

ELECTRICAL CONTROL PANEL:
The Electric Control Panel Is Located On The Left Hand Side Of The Machine. It Is Assembled From The Internationally Reputed Parts For Consistent Performance, Reliability And Availability, If Needed To Be Replaced. It Is Wired Cleanly And Labeled/Ferruled Properly As Per The International Practices To Help Easily Locate Any Fault And Replace Components Conveniently.
