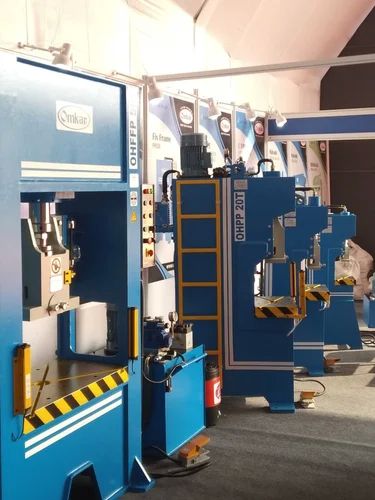

H Frame Hydraulic Press Machine, Capacity : 40-100 Ton

Frame Contraction : Frame is fabricated from IS-2062 graded rolled steel plates table and cutting beam deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. These frames are strain free and eliminate welds at load supports. Thus the accuracy of the machine is never disturbed.

Table & Slide (Ram) : Table and Slide are made of high grade heavy duty cast iron/steel fabricated and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precision press operation.

Cylinder : The cylinder bodies are precisely made from forged steel material duly bored and fine honed or long sealing life. The piston rods are made from EN-8 material having low carbon contents. The piston rod is hard chrome platted (0.200 micron).

Hydraulic System : The compact blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low noise hydraulic system is placed on the rear side of machine, on the rear side of machine, on top between two side plates. Pressure relief values are provided to safe guard the system and machine from overload. The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable if generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.

Electrical Control Panel : The electrical control panel is located on the left hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if need to be replaced. It is wire cleanly and labeled/ferruled properly as per the international practices to help easily locates any fault and replaces components conveniently.
