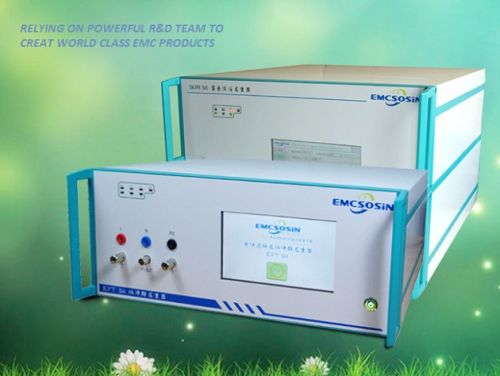

MEC Solution Generator

The EFT S T series are the state-of-the-art EFT Burst testers with a built-in coupling decoupling network for single phase or three-phase mains supply line and a HV terminal to connect a capacitive coupling clamp. Its performance fully complies with IEC 61000-4-4 standard.
Features
1) Fully Compliant with latest Standards IEC EN 61000-4-4
2) User friendly 7” Touch Panel Display
3) Support multi-language & facilitate users
4) Built-in environment self-test program
5) Programmable operation
6) Pre-programmed IEC 61000-4-4 test settings
7) The highest pulse frequency is up to 1.2MHz
8) RS232 interface, PC control operation & printable test report
9) Comfortable use and convenient operation
Technical data
1) Model: EFT S4
2) Output Voltage: 0.1~ ±5KV
3) Frequency: 1KH~1.2MHz ±10% , continuous adjustable
4) Pulse Polarity: Positive negative alternating
5) Running Time: 1~9999s, continuous adjustable
6) Internal Resistance: 50Ω ±10%
7) Pulse Front Edge: 5ns ±30%
8) Pulse Width
50ns ±30% (50Ω load),
35ns~150ns (1kΩ load)
9) Pulse Number
1~255, continuous adjustable
10) Phase Angle
0~359°synchronous, asynchronous, or automatic
11) Burst Period:
0.15~99.99s, continuous adjustable
12) Coupling Decoupling network:
Built-in, single-phase three-wire, 16A
(customer specific on demand)
13) Power Supply:
AC 220V ±10% 50 60Hz
14) Ambient Temperature:
15℃~35℃
