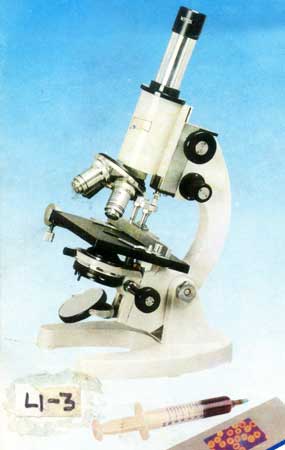

We are known as the chief Medical Microscope Supplier in India. The company enjoys a good reputation all over the world for their Medical Microscopes and Optical Measuring instruments. All Medical Microscopes are latest in design, precision-engineered with the finest features, usually found only in high-priced models. The operational function of our Medical Microscope can be carried out without any difficulty and provide so crisp and clear image that even advanced scientific studies are routinely possible. Stand Robust, stable and aluminum die-cast base Body

• Monocular body tube inclinable up to 90° degrees
• Mechanical Tube length 160 mm

Nosepiece Quadruple revolving with positive click stops for smooth accurate Stage Fixed square stage 120 x 120 mm with detachable mechanical stage having travel range 40 x 75 mm with graduated scales and verniers Condenser Abbe (NA 1.25) condenser focusable with rack-pinion, continuously variable iris diaphragm with built-in swing out filter holder and removable blue filter, allows fine adjustment of illumination. Focusing By vertical movement of body tube, Coarse adjustment by rack-pinion movement. Fine adjustment by screw- lever mechanism having right side knob graduated each division showing 0.002 mm. Illumination Plano-concave mirror diameter 50 mm. Also available attachable 20 watts lamp for 220 volts or 6 volts, 15 watts lamp as optional with transformer. Objectives Achromatic 10x, 45x and 100x oil immersion Eye Pieces 5x, 10x, 15x (any two) or WF 10x Safety Adjustable down stopper to prevent accidental breakages of the specimen slides Accessories Vinyl cover, Duster, Blue filter and operating manual Packing In styrofom container or wooden carrying case Optional Accessories Draw Tube, Co-axial Mechanical stage, sub-stage lamp etc
