VSI Electronics Private Limited is an established manufacturer, supplier and exporter of Microprocessor Based Semi Auto Bio Chemistry Analyzer from India. Microprocessor Based Semi Auto Bio Chemistry Analyzer offered by the company are high on quality, performance and are made of the finest quality raw materials, making them durable and long lasting.

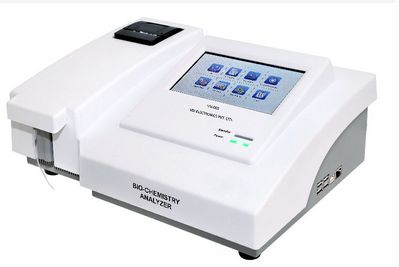

Touch Screen Microprocessor based Semi Auto Bio-Chemistry Analyzer (VSI-901) for End Point, Kinetic, Fix Point, Multi-Standard and coagulation tests, complete with standard accessories. Quartz flow cell system. It has Built-in Thermal Printer with graphics capability. It has up to 300 test parameters, 240x128 LCD Display. Paltrier Controlled thermostat, open reagent system, user friendly.
SALIENT FEATURES:
Note: Appearance & Specifications are subject to change due to continuous development.
| Test Method | *End Point with Standard/Factor *Two Point Kinetics (Fixed Time) *Multipoint Kinetics *Multi standard up to 8 standards *Biochromatic, Dual Wavelength *Absorbance *Coagulation |
| Optical System | Principle: Photometric Analysis with Interference Filter |
| Absorbance Range: 0.0000 – 3.0000 (Linearity: +/- 1%, Repeatability: 0.001, Resolution: 0.0001) | |
| Spectral Range Selection: Automatic Via Filter Wheel | |
| Wavelengths: 340, 405, 450, 505, 546, 578, 630 nm. + 2 Free Positions, +/- 2CML Precision | |
| Light Source: 6V 10W Long Life Tungsten Halogen Lamp | |
| Detector: Photodiode | |
| Thermal System | Peltier Regulated 25 Deg. C, 30 Deg. C, 37 Deg. C& Room Temperature // Accuracy: +/- 0.3 Deg. C |
| Cuvettes | Flow Cell: Quartz 32 µl, Path Length: 10mm. // Removable Cuvette (Square and Round) |
| Printer | Inbuilt Thermal Printer (57mm) |
| Display & Input System | 7.0 inch colour Touch Screen // External Keyboard & Mouse Facility |
| Suction System | Pressure Auto Releasing Peristaltic Pump // Suction Volume: 300 µl to 3.0 ml. // Air Column facility after each sample to avoid carry over. |
| Test Parameters | Up to 300 |
| Storage | 2,00,000 Test Results with Editable Patient Information Storage of Quality Control & Standard Results |
| CPU | DDR2 SDRAM: 1 G Bit Flash: 256 MB ARM Cortex A8, 720 Mhz. |
| Quality Control | Lew-Jennings Chart Using Westgard’s Rule Auto Drawing of QC Figures |
| Operating Conditions | Temperature: 10oC ~ 37oC Relative Humidity: <85% |
| Power Requirement | Voltage: 100-240V AC (Auto Adaption) Frequency: 50/60 Hz. External Power Adaptor: 19V 4.7 Amp. |
| Size (LxWxH) | 400 x 300 x 160 (Instrument) |
| Weight | 6 Kg. Approx. (Instrument) |
| Standard Accessories | Printer Paper Roll, Removable Cuvette, Optical Mouse, External Key Board, AC Adapter |
