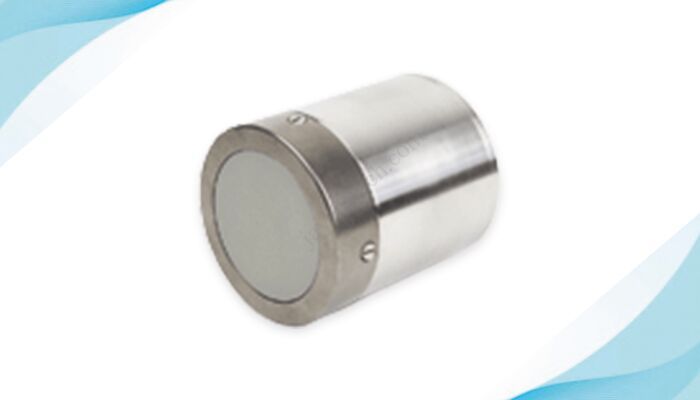

Microwave Moisture Measurement Sensor For Mixers Hydro Mix

Listing ID #5059405

  • Power Supply+15Vdc to +30Vdc. 4W
  • Construction Protection RingHardened Steel
  • Material PenetrationApproximately 75-100mm dependent on material.
  • Operating Temperature0-60 degrees C. The sensor will not measure in ice.
  • Supply Type Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 14 Years
  • Nature of Business Manufacturer
  • GST No. 27AAACJ9890Q1ZK

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Fixing The Hydro-Mix is secured to a fixing plate by a clamp ring. This allows the height of the sensor to be adjusted if necessary.
  • Analogue Outputs 2 Configurable 0-20mA or 4-20mA current loop source available for moisture and temperature. May also be converted to 0-10V DC.
  • Construction Faceplate Ceramic
  • Connections The sensor is fitted with a 10-way MIL-SPEC connector. A 4, 10 or 25 meter, 6 twisted pair cable pre-assembled for connection to a waterproof junction box is available.
  • Moisture Range The Sensor Will Measure Up to Saturation of Material.
  • Operating Temperature 0-60 degrees C. The sensor will not measure in ice.
  • Body Stainless Steel
  • Power Supply +15Vdc to +30Vdc. 4W
  • Construction Protection Ring Hardened Steel
  • Material Penetration Approximately 75-100mm dependent on material.
  • Digital Inputs/Output 2 configurable digital signals are provided for batch average start/stop or for moisture / temperature multiplexing purposes.

Working mechanism is changing along with the use of technology. Without it, working in the industry is like next to impossible nowadays. Jayceetech makes a difference by providing the highest quality and durable tech products. Our products are another name of advanced and hi-tech era. Our engineers and staff members are the backbone of the company, perhaps, that’s why we are the fastest growing Moisture Sensor for Mixers and Small Vessels supplier in India.
Moisture Sensor for Mixers and Small Vessels
Being the best Moisture Sensor for Mixers and Small Vessels suppliers in India, Jayceetech provides various kinds of sensor. All the products offered by us have different usages. Our Moisture Sensor for Mixers and Small Vessels are known as HydroMix sensor which is useful for flush mount for mixers, in Concrete Plants, Biofood Grains outlet chutes and other bulk materail small hoppers.
Salient Features of our Moisture Sensor for Mixers and Small Vessels

  • Hydro – Flush mount, digital, microwave moisture sensor.
  • We have used advanced digital technology in our product that makes the product easy to use with the least possible variations.
  • Fully temperature compensated measurement is integrated in order to balance the power supply and prevent damages.
  • Different measurement modes are available so users can measure temperature, and accuracy easily.
  • The product has sensor configuration, easy interface, and normal power requirements.
  • We have attached influence calibration with the possible wear life.
  • Replaceable Ceramic Faceplate is also available for the product. After the warranty period, even if there is damage, users can just change this part instead of buying a new product or equipment.


General
The simplified design of the product makes it the best Moisture Sensor for Mixers and Small Vessels manufacturer in India. Apart from the above, technical specification includes clear specifications of the parts used in the product. It requires 15 to 30VDC power supply for operation.
The main body of product is made of stainless steel, protection ring is made of hardened steel, and faceplate is made of ceramic. For smooth and comfortable use of product, it is good to keep the operating temperature in between 0 to 60 degree Celsius. Sensor does not work or generate data in minus or ice temperature. Our sensors for mixers and small vessels are highly sensitive to materials and designed in such a way that they can measure as well as sense the saturation and range of materials.
With Jayceetech, there is no worry even if you do not have enough technical knowledge of any part as we provide all information in our primary book. Apart from this, our Technical support for products is available clock-around.
Features

  • Fully Temperature Compensated Measurement
  • Advanced Digital Technology
  • Easy to Interface
  • Replaceable Ceramic Faceplate
  • Measurement Modes
  • Wear Life
  • Sensor Configuration
  • Simple Power Requirements
  • Temperature Measurement
  • Measuring in the Mix
  • Calibration
  • Accuracy of Measurement


Digital (Serial) Communications
Opto-isolated RS485 2-wire port. Uses Hydro – com communications protocol for read/write access to sensor parameters and values. Ethernet and USB interfaces are also available.


Catalogue


Download Detail File : Click Here
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Established in the year 2000 and promoted by a group with extensive experience in offering effective solutions to the need of process measurement and control, we manufacture and market various types of level sensors and flow meters for industrial processes. By specializing and actively developing the market for these products, the company has established itself as one of the leading suppliers of level instruments in the Indian market. The range of instruments manufactured and sold are : • RF Admittance Point Level Switch • Vibrating Fork Point Level Switch (For solids and Liquids) • Rotating Paddle Level Switch • Conductivity Level Switch • Chute Block Level Detector Switch • Boot Level Switch • Fuel Level Sensor/transmitter • Capacitance Level Transmitter • Electromagnetic Flow Meter • 2-Wire Ultrasonic Level Transmitter • (3-4 Wire) Ultrasonic Level Transmitter • Self Adjusting 'Smart' Radar Level Measurement Sensors (For Liquid Material) • Self Adjusting 'Smart' 26 GHz Radar for Solid Materials • On Line Moisture Measurement for Bulk Material • Nucleonic Density Measuring Instrument We manufacture and supply instruments for use in cement, power, steel, mining, chemicals and petrochemicals, soap and detergents, fertilizers, paper, food Industry, Packaging Plants, ETP and Water Treatment and Water Engineering Plants and many other industries. These are being used by leading industries and in many countries.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Number of Employees Below 20
  • Year of Establishment 2000
