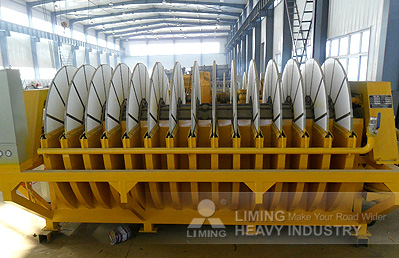

Ceramic Filter

Number Of FlowerMining benefit teams
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The ceramic filter is integrating electromechanical,porous ceramics and ultrasonic technology.What is a filtration equipment relies on vacuum suction and capillary action to achieve solid-liquid....

View More Details

Send Enquiry

Company Information

Akins Interior Solutions

BTM Layout, Bangalore, Karnataka

4.0/5

(1)

View Number

Member Since 14 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The ceramic filter is integrating electromechanical,porous ceramics and ultrasonic technology.What is a filtration equipment relies on vacuum suction and capillary action to achieve solid-liquid separation.With high filtration efficiency,low production cost,energy saving,environment protection.Applicable to materials fineness 200-450 mesh and various ultrafine materials. It can be widely used in metallurgy, mineral processing and other industries,what is the world's most advanced products of solid-liquid separation.
Features
1. Excellent chemical stability, resistant to acid, alkali, resistance to oxidation;
2. High resistance to high temperature, high voltage, large over current and high filter precision;
3. Resistant to organic solvents;
4. Longer life compared with the organic film;
5. Easy to clean, available online pharmaceutical or high-temperature sterilization, reverse flush.
Working Principle
Ceramic filter under the poor pressure, when the suspension through the filter medium, the particles are trapped in the filter cake formed on the surface medium, the liquid flow through the filter medium, to achieving the solid-liquid separation. Ceramic filter plate has a microporous that can generate capillary effect, which makes the pores of the capillary force is greater than the force exerted by the vacuum, so that pores remain filled with liquid state, no matter under what circumstances, ceramic filter plate does not allow air through, because there is no air through, the solid-liquid separation is of low energy consumption and high vacuum.
Processed Materials :
Ceramic filter can be used to remove impurity out and improve the purity effectively. This machine mainly takes advantages of high filtration efficiency, low production costs and good stability, which is new equipment popular in mining machinery industry.
Applications :
The product has been widely applied to major mining companies’ filter process, such as, iron ore, copper, lead ore, aluminum ore, nickel ore, gold ore, phosphate ore, fluorite ore and so on.

Type/Parameter	Filter Disc/Ring	Amount of Screen/Board	Cubage of Groove/M3	Power of Installation/KW	Moving Power/KW	Mainframe（L×W×H/）/M
TC-1	1	12	0.21	3.5	2.0	1.6×1.4×1.5
TC-4	2	24	1.0	7.0	3.0	2.4×2.5×2.1
TC-6	2	24	1.2	7.0	6.0	2.4×2.9×2.5
TC-9	3	36	1.7	9.0	7.0	2.7×2.9×2.5
TC-12	4	48	2.2	11.0	7.5	3.0×2.9×2.5
TC-15	5	60	2.7	11.5	8.0	3.3×3.0×2.5
TC-21	7	84	4.0	13.5	9.0	4.6×3.0×2.6
TC-24	8	96	4.5	16.5	10.5	4.9×3.0×2.6
TC-27	9	108	5.0	17.0	11.0	5.2×3.0×2.6
TC-30	10	120	5.5	17.0	11.5	5.5×3.0×2.6
TC-36	12	144	7.0	23.0	16.0	6.6×3.0×2.6
TC-45	15	180	8.5	25.0	19.0	7.5×3.0×2.6
TC-60	15	180	12.5	33.0	22.0	7.5×3.3×3.0
TC-80	20	240	16.2	40.0	24.0	9.0×3.3×3.0
TC-102	17	204	18.5	53.0	35.0	8.8×3.6×3.3
TC-120	20	240	20	60.0	40.0	9.7×3.6×3.3
TC-150	15	300	24	75.0	47.0	11.2×3.6×3.3
