Metal Modbus Data Logger, Packaging Type : BLACK

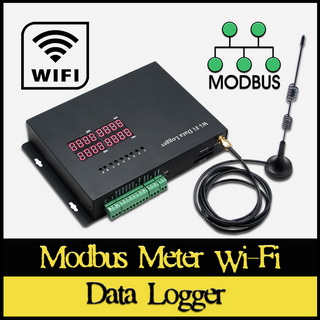

Offers gsx8-ms-wf is a modbus data logger.
It uploads sensors data, modbus meter reading via wi-fi.
It is a wi-fi modbus data logger with programmable io.
Its built-in ups feature providing user alert of ac power loss.
During power loss, operation is backed up internal rechargeable battery.
Overview:
* 2 temperature sensors (max.)
* 1 humidity sensor
* 8 analog channels (max.)
* 10 digital inputs
* 4 pulse channels
* 4 relay outputs
* modbus rs485 interface
* 16 modbus data registers
* 32gb sd memory card slot
its internal 4mb memory logs ~30000 data records, and expandable to 32gb with sd card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.
Features
1) real time wi-fi data upload
2) integrated 16 bit mcu & wi-fi bgn module
3) programmable data input type & alert hilow
4) programmable data upload interval & logging interval
5) easy setup via usb port by pc software
6) rs485 port support data capturing in modbus protocol
7) support dhcp or fixed ip, and udptcp protocol data transmission
8) flexible acdc power with internal battery backup
