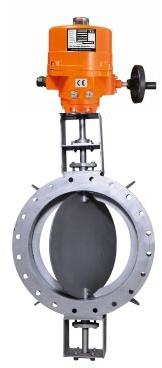

Our manufacturing unit enables us in providing to the clients technologically advanced Motorized Damper Valves. Unique design, low power consumption, longer working life, durable and minimal maintenance are exhortations that characterize the range of Motorized Damper Valves offered by us in the markets. These Motorized Damper Valves are obtainable at highly competitive rates and within the predetermined time-frame.
Used For :
Electrical Actuator Details
| Manufacturer | Cair Euromatic Automation |
| Brand / Model | Cair / MOD |
| Characteristic | On - Off Type |
| Travel | 90 Degree |
| Indicator | Continuous Position Indicator |
| Phase | Single Phase |
| Power Supply | 220V AC, 50 Hz |
| Body Material | Aluminum Alloy |
| Ambient Temperature | 20oC ~ 80oC |
| Motor Insulation | Class F |
| Protection Class | IP - 67 Weather Proof |
| Manual Adjustment | Wrench Setting |
| Limit Switch | 1NO + 1NC output of 220V AC |
| Position Power Failure | Stay Put |
| Manual Override | Provided |
Accessories
| Modulating Controller | 4 ~ 20 mA (Available on request) |
| Potentiometer Feedback | Available on request |
| Integral Starter unit | Available on request |
| Control Panel | Available on request |
Technical Specifications
| Body | Cl (IS 210 Gr. FG 200 / 220) WCB |
| Disc | CF8 / CF8M / CF3M / WCB / Power Coated |
| Seat | Metal to Metal |
| Shaft | AISI 410 |
| Valve Type | Centric Disc Butterfly Valve with Metal to Metal |
| Body Type | Short Wafer (Sandwiched Between Flanges) |
| Seat Type | Metal to Metal |
| End Connection | Wafer Sandwiched (Lug Type On Request) |
| Pressure Rating | PN 10 (Maximum) |
| Oper. Temp, Range | -25oC to 200oC (depending on MOC) Up to 600°C |
| Seat Leakage | Tight Shut Off (Batter then Class) 0.5 % Leakage |
| Operation | Hand lever for sizes from 40 NB to 150 NB Worm Gear Boxes for 200 NB to 300 NB. |
Dimensions
| Model No. | Valve Size | A | B |
| AGB - 0.5 | 1.½" | 124 | 178 |
| AGE - 1.5 | 2" | 138 | 178 |
| AGB - 2.5 | 2.½" | 143 | 178 |
| AGE - 3.5 | 3" | 150 | 178 |
| AGB - 4.5 | 4" | 176 | 265 |
| AGB - 5.5 | 5" | 188 | 265 |
| AGB - 6. 5 | 6" | 206 | 265 |
| AGB - 7.5 | 8" | 245 | 375 |
| Valve Model | Valve Size | A | B | C | D | E | L | Weight | |
| MM | Inch | ||||||||
| DP - 40 | 40 | 1.1/2 | 58 | 103 | 33 | 40 | 124 | 178 | 2 |
| DP - 50 | 50 | 2 | 60 | 117 | 43 | 50 | 138 | 178 | 3 |
| DP - 65 | 65 | 2.1/2 | 67 | 122 | 46 | 65 | 143 | 178 | 4 |
| DP - 80 | 80 | 3 | 75 | 129 | 46 | 80 | 150 | 178 | 5 |
| DP - 100 | 100 | 4 | 97 | 149 | 57 | 100 | 176 | 265 | 6 |
| DP - 125 | 125 | 5 | 108 | 158 | 56 | 125 | 188 | 265 | 6.5 |
| DP - 150 | 150 | 6 | 120 | 174 | 56 | 150 | 206 | 265 | 9 |
| DP - 200 | 200 | 8 | 147 | 198 | 60 | 200 | 230 | 375 | 12 |
| DP - 250 | 250 | 10 | 219 | 270 | 68 | 245 | 316 | -- | -- |
| DP - 300 | 300 | 12 | 246 | 287 | 78 | 292 | 369 | -- | -- |
| DP - 350 | 350 | 14 | 286 | 325 | 80 | 340 | 449 | -- | -- |
| DP - 400 | 400 | 16 | 292 | 355 | 102 | 390 | 459 | -- | -- |
| DP - 450 | 450 | 18 | 322 | 358 | 89 | 450 | 528 | -- | -- |
| DP - 500 | 500 | 20 | 386 | 415 | 92 | 480 | 612 | -- | -- |
