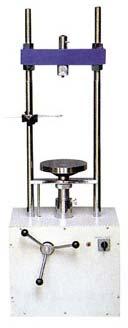

Motorized Triaxial Shear Apparatus

We offer high quality Motorised Triaxial Shear Apparatus at an affordable price. Motorised Triaxial Shear Apparatus is used for determining triaxial shear strength present in a soil, which should be of specimen, 38 mm, 50 mm, 75 mm and 100 mm dia. We are known for manufacturing our Motorised Triaxial Shear Apparatus with durable components and materials that extends its life. Models Of Motorised Triaxial Shear Apparatus

• Model No : VK-01 : Single Speed
• Model No : VK-02 : 30 Speed
• Specifications
  • One load frame 5000 Kgf motorised, consists one rate of strain type, giving the following rates of strain. 1.25mmmin. Load frame is supplied with a dial gauge bracket. Universal triaxial cell (stationary bushing) 10kgcm.sq. One lateral pressure assembly 0-10 kgcm.sq. One lateral pressure assembly 0-10kgcm.sq. Complete with foot pump and rubber hose. One high sensitivity proving ring capacity 1000kg. One strain dial gauge 0.01 x 25mm. Suitable for operation on 230 V A.C
  • Same as VK-01 but the motorised load frame capacity 5000 Kgf has 30 rates of strain from 0.00048 mmmin to 6.0mmmin
  • Suitable for operation on 230 V A.C.
  • Accessories : High sensitivity proving ring capacity 2500 Kgs with calibration chart and carrying case
