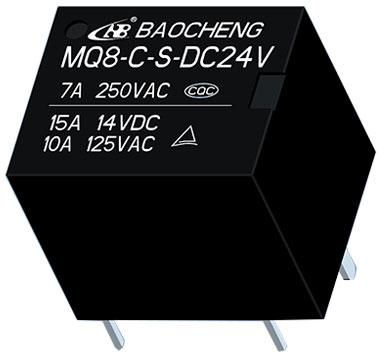

relay type:Â mq8 relay
baocheng export excellent power relay, telecom relays and automotive relays.
Â
· tight structure and light weight
· high current contact capacity (carrying current:Â
 35a/10min. 25a/1h)
· improved heat resistance
· option for sealed and flux-tight type
· conform to tuv approval standard
· environmental friendly productÂ
· outline dimension: 15.5 x 12.5 x 13.5mm
latching relays, high sensitivity latching relays wholesaler, china
contact ratings | |
contact form: | 1a, 1b, 1c |
contact material: | agsno2 |
contact load capacity: | 20a/14vdc；15a/14vdc; 10a/125vac |
max. switching current: | 35a |
max. switching power: |  |
mechanical endurance: | 1*107ops |
electrical endurance: | 1*105ops |
Â
technical ratings | |
insulation resistance: | 100mω |
dielectric strength(between coil&contact): | 500vac |
operate time (max.): | 10ms |
release time (max.): | 5ms |
ambient temperature: | -40℃ ~85℃ |
terminal type: | tht |
Â
coil ratings | |
nominal voltage | (6-24)vdc |
nominal coil power | 0.6w,0.8w |
