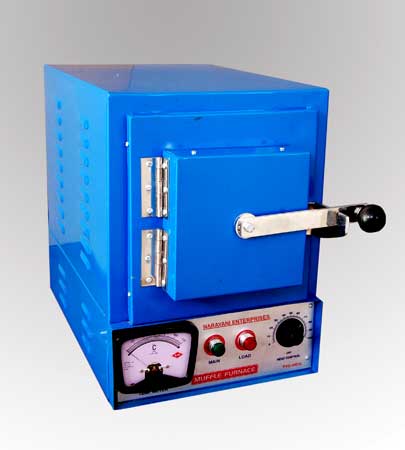

Muffle Furnace, Rated Power (kw) : 1 Kw

Our highly famous Muffle Furnace is robustly constructed with thick mild steel sheet, electrical furnace, fitted with a front door. Kanthal wire heating element wound externally on the muffle and embedded in high temperature embedding cement, insulated with high efficiency ceramic fiber minimizing heat loss. Temperature controlled by an energy regulator and with a silver fuse which prevents temperature rising above 1100 ^oC. Temperature is indicated by an 80 mm pyrometer connected to a thermocouple. Features :

• Working temperature 1000 ^oC. With mains indicator lamp, on/off switch and 1.5 three core mains cable and plug to use on 220 V 50 Hz AC
• Industrial furnaces with digital temperature indicator-cum-controller

Technical Specifications :

• Loading 1.5 kW
• Heating time for 1000 ^oC One hour
• Controllability ± 50 ^oC
• Maximum, continuous
• working temperature 1050 ^oC or 1150 ^oC

Dimensions : Inner Working Size Ht.xwxd mm

• 225 x 100 x 100
• 250 x 125 x 125
• 300 x 125 x 125
• 300 x 150 x 150
• 300 x 200 x 200
• 350 x 175 x 125
• 475 x 175 x 125
• 450 x 225 x 225

Dimensions of Industrial Furnaces : Outer size Ht.xwxd mm Inner working size Ht.xwxd mm

• 460 x 350 x 350, 300 x 125 x 125
• 460 x 380 x 380, 300 x 150 x 150
• 460 x 430 x 430, 300 x 200 x 200
• 600 x 480 x 480, 450 x 225 x 225

Optional :

• Digital temperature Indicator cum-controller instead of energy regulator and pyrometer
• Microprocessor PID Digital Temperature Indicator-cum-controller instead of energy pyrometer
