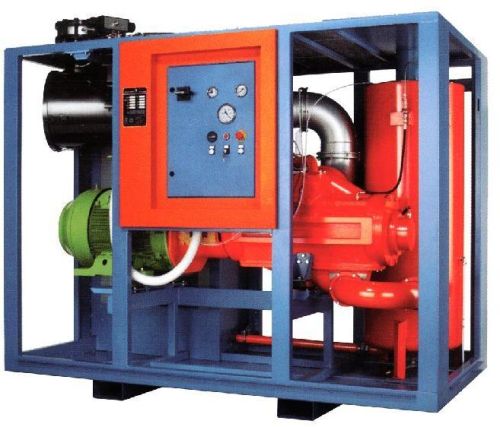

MULTI-VANE VACUUM PUMPS

The Multi-Vane Vacuum pumps are single-stage, heavy-duty rotary vane vacuum pumps of high pumping capacity. The pump’s high capacity, coupled with its ability to handle harsh environmental conditions make it suitable for a Central Vacuum System applications.

• Pumping Capacity Range: 250 m3/hr to 3240 m3/hr
• Ultimate Pressure: 0.5 mbar
• High pumping speed over operating pressure range (450 mbar – 0.5 mbar)
• Very high water vapor tolerance by ensuring high operating temperatures
• Air cooling system through an aluminum radiator and electric fan thermostat for operating without cooling water
• No coolant consumption thanks to the closed-loop lubrication circuit and high efficiency separation element
• Durability and efficiency guarantee by the special aluminum alloy vanes that ensure constant performances even after tens of thousands of hours of operation
• Limited footprint thanks to the compact layout designed to minimize the space needs
• Fully automatic operation: intake valve regulated by safety vacuum switch, coolant temperature control, thermostat and auxiliary control switches
• Coolant separator and recovery for clean air exhaust without treatment
• Control panel complete with main power switch, easy to operate

The UV vacuum pumps are operating in a variety of industrial processes where they can handle massive workloads at constant speed, 24/7, ensuring high reliability even in harsh environments with ambient temperatures up to 50°C.

• Glass Forming
• Drying and Degassing
• Thermoforming
• Extrusion
• Ceramics, Bricks and Tiles
• Metal and Plastic forming
• Pick & Place
• Surface Coating
• Electrical winding
