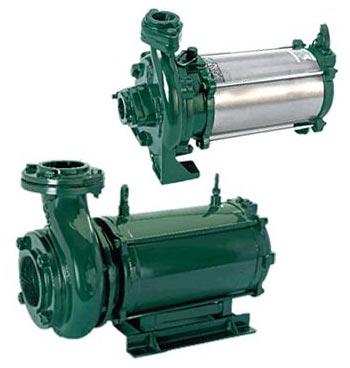

CRI Horizontal Openwell Submersible Pump Retailer in Anand Gujarat India

CRI Horizontal Openwell Submersible Pump, For Agriculture, Domestic, Industrial, Certification : CE Certified

Sold By : Ashish Auto

Product Specifications

CertificationCE Certified
Packaging TypeMUlticolor
Power1-3kw
PressureHigh Pressure
ApplicationAgriculture, Domestic, Industrial, Submersible
Number Of FlowerOpen Well Submersible Pump
Country of Origin110V
FuelElectric
Supply TypeSupplier, Retailer, Distributor, Trader

Preferred Buyer From : Anywhere in India

Product Overview

We are engaged in offering CRI Horizontal Openwell Submersible Pump. The CRI Horizontal Openwell Submersible Pump, we supply, has operating efficiency and long functional life. CRI Horizontal Openwell Submersible Pump, we offer, has power range of 0.37 kW – 1.5 kW (0.5HP-20 HP). The pump works well in open well where there is a wide fluctuation in water level.

Features :

SS and carbon thrust bearings used in vertical openwell sub
Bronze impeller in specific models
Specially designed journal bushes for better cooling effect
Designed for extensive voltage fluctuations
High operating efficiency
Detachable pump and motor in vertical higher stage pump

Specifications

Power Range	0.37 kW – 1.5 kW (0.5HP-20 HP)
Speed	2880 RPM
Version	Single phase 200-240V, Three phase, 380 -415V, 50Hz, A.C Supply
Maximum total head	Upto 80 m
Maximum flow rate	Upto 195 m3 / h (54 lps)
Degree of Protection	IP 58
Direction of Rotation	Clockwise viewed from driving end
Nominal delivery size in mm	25, 50, 65, 80 & 100
Type of Duty	S1 (continuous)
Method of starting	Capacitor Start Capacitor Run (CSCR) / Permenant Split Capacitor (CSR) Direct on Line upto 5.5 kW, SD upto 30kW
Maximum starts per hour	6 times

Material Of Construction

Part Name	Material
Rear cover / Bracket	Cast iron
Stator Shell	Cast iron / S.S / M.S
Impeller	Cast iron (FG 200 / S.S AISI - 304 / Lead Bronze
Shaft	SS AISI 410
Pump casing	Cast iron (FG 200)
Shaft seal	Nitrile butyl rubber
Thrust assembly	Leaded Bronze and Compostos / Stainless Steel 420 with Graphite Carbon
Diaphragm	High Nitrile butyl rubber
Journal bearings	LTB 4
