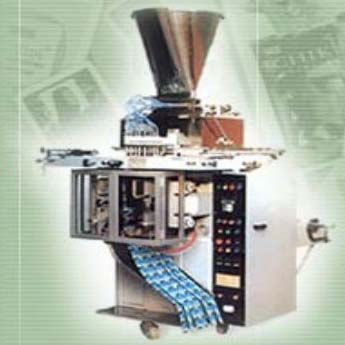

Multitrack Liquid Filling Machine

Supply TypeManufacturer, Supplier
Preferred Buyer Location India only

We are bracketed among the trusted Manufacturers and Suppliers of Multitrack Liquid Filling Machine. Our range of Liquid Filling Machines is used for sachet packing ranging from 5 ml to 100 ml. In addition, these can also be used for packing liquid products and paste. One can obtain these at competitive rates from us.

View More Details

Send Enquiry

Technical Specification

Description	Model SDE 800	Model SDE 600	Model SDE 400
Machine Speed	Upto 70 SPM depending on the Product and quality to be packed.	Upto 65 SPM	Upto 60 SPM
Packing Range	1 ml to 30 ml/gm	1ml to 200 ml/gm	1ml to 200 ml/gm
No. of Tracks	Depending on the Pouch width (8 - 10)	Depending on the pouch width upto 6 track	Up to 4 track
Max Roll Dia	800mm	600 mm	400mm
Max Length of Pouch	Programmable	250 mm	150 mm
Film Draw Mechanism	Servo Based/Electro	Electromagnetic clutch and break	Electromagnetic clutch and break
Web Controller	Electronic Web Edge Control	Pneumo hydraulic Web Edge Controller	Pneumo Hydraulic Web Edge Controller
Compressed Air	2 CFM @ 6 Kg/cm sq	2 CFM @ 6kg/cm sq	2 CFM @ 6kg/cm sq
Electric Power	9.4 KW	7.6 KW	5.0 KW
Machine Dimension	3950 x 1650 x 2600 (L x W x H)	2050 x 1550 x 2600 (l x W x H)	1800mm x 1200mm x 2500mm (L x W x H)
Net Weight	2200 kg	1500 Kg.	1200 Kg.
