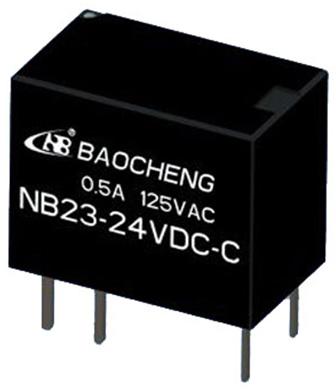

relay type:Â nb23 relay
baocheng export excellent power relay, telecom relays and automotive relays.
Â
· 1a switching capabilityÂ
· high sensitivity, low power consumption 150mw
· standard dip structure
· one group of no&nc contact form available
· plastic sealed type
· environmental friendly productÂ
· outline dimension: 12.5 x 7.5 x 10mm
telecom relays, telecom relays 19f, telecom relays exporter, china
contact ratings | |
contact form: | 1c |
contact material: | agni (gold clad) |
contact load capacity: | 0.5a,1a/125vac; 1a/30vdc |
max. switching current: | 1a |
max. switching power: | 62.5va/30w |
mechanical endurance: | 1*107ops |
electrical endurance: | 1*105ops |
Â
technical ratings | |
insulation resistance: | 1000mω |
dielectric strength(between coil&contact): | 1000vac |
operate time (max.): | 5ms |
release time (max.): | 5ms |
ambient temperature: | -30℃ ~70℃ |
terminal type: | dip |
Â
coil ratings | |
nominal voltage | (3-24)vdc |
nominal coil power | 0.15w,0.2w |
.
