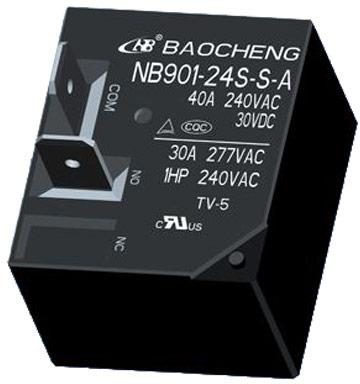

Contact SupplierBaocheng export excellent power relay, telecom relays and automotive relays.
· 40A switching capabilityÂ
Â
· THT&QT terminal types for heavy duty
· Dielectric strength between coil and contact 2.5KV,Â
 max.4KV
· NO,NC,NO&NC contact form available
· Option for sealed and flux-tight type
· UL insulation grade:Class F
· Environmental friendly productÂ
· Outline dimension: 32 x 27.2 x 28.5mm & 32 x 27.2 xÂ
 20.5mm
Baocheng produces Relay Switch, Relay Electronics, Relay Coil and Basic Relay.
Â
Contact Ratings | |
Contact Form: | 1A, 1B, 1C |
Contact Material: | AgCdO, AgSnO2 |
Contact Load Capacity: | 1A:40A/240VAC,30VDC |
1B:40A/240VAC,30VDC | |
1C:40A/240VAC,30VDC | |
Max. Switching Current: | 40A |
Max. Switching Power: | 9600VA/1200W |
Mechanical Endurance: | 1*107OPS |
Electrical Endurance: | 1*105OPS |
