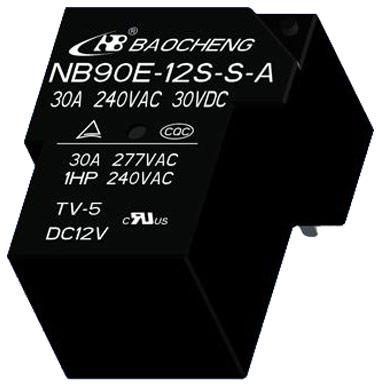

relay type:Â nb90e relay
baocheng export excellent power relay, telecom relays and automotive relays.
Â
· 30a switching capabilityÂ
· compact structureÂ
· dielectric strength between coil and contact 2.5kv,Â
 max.4kv
· no,nc,no&nc contact form available
· option for sealed and open type
· ul insulation grade: class f
· environmental friendly productÂ
· outline dimension: 32 x 27.2 x 20mm
telecom relays, telecom relays 19f, telecom relays exporter, china
Â
contact ratings | |
contact form: | 1a, 1b, 1c |
contact material: | agcdo, agsno2 |
contact load capacity: | 1a:30a/240vac,30vdc |
1b:20a/240vac,30vdc | |
1c:30a/240vac,30vdc | |
max. switching current: | 30a |
max. switching power: | 7200va/900w |
mechanical endurance: | 1*107ops |
electrical endurance: | 1*105ops |
Â
technical ratings | |
insulation resistance: | 1000mω |
dielectric strength(between coil&contact): | 2500vac |
operate time (max.): | 15ms |
release time (max.): | 10ms |
ambient temperature: | -40℃ ~ 85℃/105℃ |
terminal type: | tht |
Â
Â
coil ratings | |
nominal voltage | (5-110)vdc |
nominal coil power | 0.9w |
.
.
