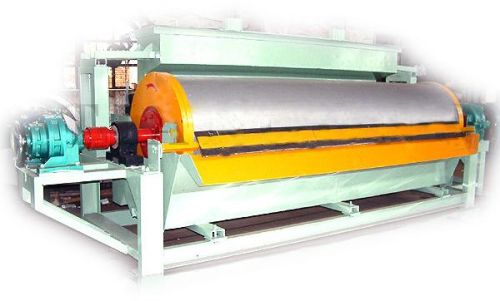

NCT Wet Drum Magnetic Separator

Model NCT1230 NCT1221 NCT1024 NCT1021 NCT1018 NCT0821 NCT0818 NCT0815`
Drum Spec
D x L (mm) 1200x3000 1200x2100 1000x2400 1000x2100 1000x1800 800x2100 800x1800 800x1500
Rotational speed of the drum
(rpm) 15 15 15 15 17.6 17.6 17.6 17.6
Magnetic induction intensity
of drum surface (mT) Average≥190
Strong magnetic field zone with
rare earth magnetic material
≥220 Average≥170
Strong magnetic field zone with
rare earth magnetic material
≥220 Average≥150
Strong magnetic field zone with
rare earth magnetic material
≥220
Working Space (mm) 40-70 40-70 40-70 40-70 35-60 35-60 35-60 35-60
Handling Capacity (m3 /h) 240-350 170-260 210-240 180-210 160-180 160-180 145-160 115-130
Power of motor(kw) 11 7.5 4 4 3 3 3 3
External Dimension
L x W x H (mm) 4840×1850×1850 3940×1850×1850 4220×1650 ×1650 3920×1650 ×1650 3620×1650 ×1650 3671 ×1450 ×1450 3371 ×1450 ×1405 3703 ×1450 ×1405
Overall weight (Kg) 8000 6500 6450 5500 5000 5000 4400 3670
