    Non Contact Radar Level Transmitters

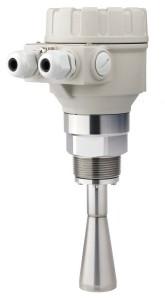

    Non Contact Radar Level Transmitters

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    FEATURES 25 GHz K-band, 2-wire Easy installation due to small antennas 23 m measuring range ±3 mm accuracy HART communication Plug-in graphical display module High temperature....
    View More Details
    Send Enquiry

    Company Information

    Machine Tools Centreverified-icon
    location Kolkata, West Bengal
    View Number
    • calendar Member Since 22 Years
    • building Nature of Business Retailer
    • Year of Establishment 1978

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    FEATURES

    • 25 GHz K-band, 2-wire
    • Easy installation due to small antennas
    • 23 m measuring range
    • ±3 mm accuracy
    • HART communication
    • Plug-in graphical display module
    • High temperature version
    APPLICATIONS
    • Level measurement of liquids, slurries, emulsions
      and other chemicals
    • Water and wastewater industry
    • Pharmaceutical industry, chemical industry
    • Food-industry, energy-industry
    • For high precision level measurement tasks
    SPECIFICATIONS
    • Measuring frequency: 25 GHz (K-band)
    • Power supply: 24 V DC (nominal)
    • Output: 4-20 mA, HART
    • Antenna material: horn: 1.4571, enclosure (optional): PP, PTFE
    • Antenna diameter: DN40 mm (1½”), DN50 mm (2”),
      DN80 mm (3”)
    • Medium temperature: -30 °C … +100 °C,
      high temperature version: -30 °C … +180 °C
    • Process pressure (depending on the antenna): -1 … 25 bar
    • Process connection: 1½”, 2” BSP/NPT,
      or DIN/ANSI flanges, TRICLAMP, DN50 sanitary
    • Ingress protection: IP67
