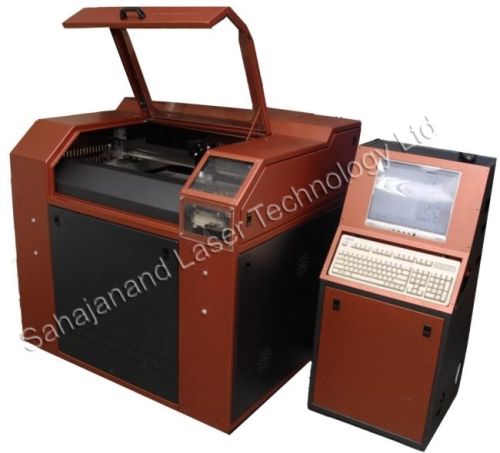

Non-Metal Laser Marking System

TECHNICAL DETAILS:
Laser Type : Sealed CO2 Laser
Average Power : 30 W / 0 W
Laser Wavelength : 1060 nm
Marking Speed (max) : 1300 char/sec
Linear Speed : 15000 mm/sec
Speed control : 1 – 100%
Power control : 1 – 100%
Software : I-Mark Plus suitable to DXF, PLT, CNC Code
* Technical specs are subject to change without prior notice.
FEATURES:
• Smooth sliding on honeycomb to swap instantly
• Designed to mark long work pieces on one direction
• Adjustable focusing system with air assists to prevent cutting edges from burning
• Rigid A.C. motor for high speed motion control
• Easy swap module design to assure maintenance properly
• Advanced I Mark plus software
• Ease in handling and operation
• Adjustable Marking depth
• High efficiency
• Fine marking lines
• Alphanumerical, logo, photo, serial number, barcode, etc can be marked easily
BENEFITS:
• Long Laser Source Life for low operational cost
• Low Power consumption : single phase electricity
• Low operational cost as its Air cooled, hence no need water chiller
• Low maintenance as no consumables
• Compact Design for lower footprint at workshop
APPLICATIONS:
Leather, Medical Box jetting, Key board, Ceramic, Plastic capsule, Shoe, Craft bamboo, Capacitance, Crystal, Fabric – jeans, Wood engraving, package marking, Medicine pill, Package marking, Button engraving
