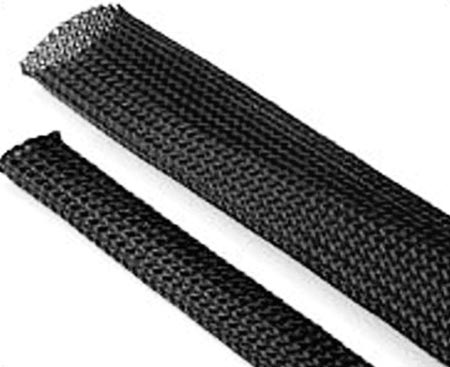

Nylon Expandable Braided Sleeve, For Cable Protection, Feature : Crack Proofed, Extra Heating Protection

Get Latest Price

MaterialNylon
Packaging TypeBoxes
Packaging Size0-10 M
Thickness.5-1mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Sree Lalguru Industries

Mysore Road, Bangalore, Karnataka

4.6/5

(28)

View Number

Member Since 17 Years
Nature of Business Retailer
GST No. 29AKBPJ7976P1Z6

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Inner Diameter0-5mm
Packaging Size0-10 M
Number Of FlowerBraided Sleeve
MaterialNylon
Thickness.5-1mm
ApplicationCable Protection
Packaging TypeBoxes
FeatureCrack Proofed, Extra Heating Protection, Shocked Proofed

We design Expandable Braided Sleeve with Nylon and Polyester monofilament. The Rilsan Braided Sleeve being flexible and easy to use gives good protection to a cable bundle. Clients are eased with the availability in Polyester (PET) and Polyimide (Nylon) of the Expandable Braided Sleeve at rock bottom prices. We are a reputed Expandable Braided Sleeve Manufacturer and Supplier located in India.

Properties of Monofilament	Operating Temperature : 50^oC to +125^oC Diameter : 0.25 mm to 0.30mm in Nylon 0.23 mm to 0.26 mm in polyester
Characteristics	Extremely flexible Highly expandable Good mechanical resistance Self extinguishing High expansion ratio versions Open weave construction allows expansion above or below original diameter
Availability	Wide range of sizes Colors : Black and Grey, although others can be produced on request Economical Military Grade
Applications	Most commonly used over wireswire bundles and harnesses, cable assemblies, flat ribbon cable, tubing and hoses to provide a tough, durable protection. Open weave construction allows for complete drainage, prevents condensation and provides for dissipation of heat and moisture. Ideal for application in machine tools, automatic equipment and robotics where wires and tubes are required to flex freely during operating cycles. Suitable for exposure to all weather conditions

» Specifications

PART NO	SIZE(I.D.)		USABLE
PART NO	(in)	(mm)	(min)	(max)
SLB 059 022	0.0788	2	1.5	3
SLB 059 032	0.1182	3	2	4
SLB 059 042	0.1575	4	3	5
SLB 059 062	0.2363	6	4	8
SLB 059 082	0.3150	8	6	10
SLB 059 102	0.3938	10	8	12
SLB 059 122	0.4725	12	10	14
SLB 059 152	0.5906	15	13	18
SLB 059 202	0.7875	20	18	26
SLB 059 252	0.9843	25	22	32
SLB 059 302	1.1812	30	26	36
SLB 059 352	1.3779	35	33	38
SLB 059 402	1.5478	40	38	46
SLB 059 452	1.7716	45	40	50
SLB 059 502	1.9685	50	42	65
