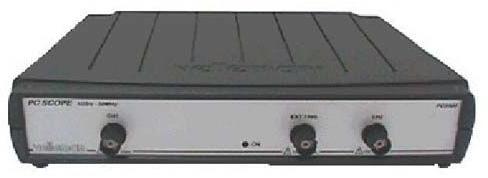

PC Based 2 Channel Oscilloscope

Get Latest Price

Number Of FlowerPC Based Oscilloscope
Sampling Frequency Repetitive1 GHz (Equivalent Sampling Rate)
FFT Resolution2048 Lines
Maximum Input Voltage100V (AC + DC)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

VPL Infotech & Consultants

Preet Vihar, Delhi

4.6/5

(30)

View Number

Member Since 20 Years
Nature of Business Manufacturer
GST No. 07AACFV6024H1Z9

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerPC Based Oscilloscope
Max Record Time9.4 Hours/screen
Maximum Input Voltage100V (AC + DC)
Channels2
Frequency Response0 Hz To 50 MHz
Input Sensitivity5mV To 15V/div With Auto Setup
Trigger LevelAdjustable In Whole Screen
Input CouplingDC, AC And GND
Spectrum Analyzer Frequency Range0.1 KHz To 25 MHz
Trigger SourceCH1, CH2, EXT Or Free Run
FFT Input ChannelCH1 Or CH2
Pre-Trigger FunctionAvailable
Sampling Frequency Repetitive1 GHz (Equivalent Sampling Rate)
Transient Recorder Timescale20ms/Div To 2000s/Div
Record Length4096 Samples / Channel
Trigger EdgeRising Or Falling
Operating PrincipleFFT (Fast Fourier Transform)
Max Number Of Samples100/s
Supply Voltage9 - 10Vdc / 1000mA
Sampling Frequency Real Time1.25 KHz To 50 MHz
Input Impedance1 Mohm / 30pF
FFT Resolution2048 Lines
Min Number Of Samples1 Sample/20s

PC BASED 2 CHANNEL OSCILLOSCOPEMODEL : PCS500FEATURESGeneral information :Inputs : 2 channels, 1 external trigger inputInput impedance : 1 Mohm / 30pFFrequency response ±3dB : 0 Hz to 50 MHzMaximum input voltage : 100V (AC + DC)Input coupling : DC, AC and GNDOptical ISOLATED from computerSupply voltage : 9 - 10Vdc / 1000mASpecificationsTransient RecorderTimescale : 20ms/Div to 2000s/DivMax record time : 9.4hour/screenAutomatic storage of dataAutomatic recording for more than 1 yearMax. number of samples : 100/sMin. number of samples : 1 sample/20sMarkers for time and amplitudeSpectrum AnalyserFrequency range : 0 .. 1.2kHz to 25MHzLinear or logarithmic timescaleOperating principle : FFT (Fast Fourier Transform)FFT resolution : 2048 linesFFT input channel : CH1 or CH2Zoom functionMarkers for amplitude and frequencyOscilloscopeTrigger source : CH1, CH2, EXTor free runTrigger edge : rising or fallingTrigger level : adjustable in whole screenStep interpolation : linear or smoothed.Markers for voltage and frequencyInput sensitivity : 5mV to 15V/division with auto setup functionPre-trigger function.True RMS readout (only AC component)Record length : 4096 samples / channelSampling frequency : Real time 1.25 kHz to 50 MHzSampling frequency : Repetitive: 1 GHz (Equivalent Sampling Rate)
