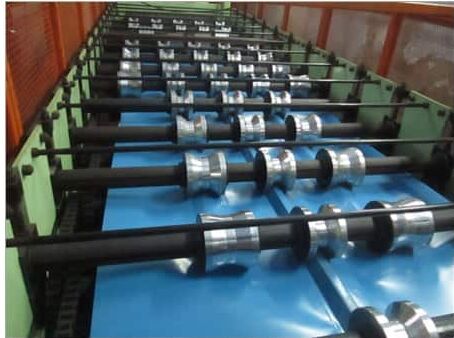

Industrial Roll Forming Machine

Product Specifications

• Packaging TypeAs per customer's requirement
• No of Sizes And profilesSingle profile
• Length Tolerance(+,-) 3 mm
• Minimum ID coil500 mm
• Floor AreaL/W/H - 15.0/1.6/1.5 M
• Dimensional Tolerance(+,-) 1 mm
• Thickness0.25 - 0.80 mm
• Feeding RollHard Chrome plated
• No of stages18 stages
• Width rangeAs per your drawing
• Roll Hardness58-60 HRC
• Length RangeAs per customer's requirement
• Runner Table6 Nos
• Bearing TypeBall Bearings
• Coil Wt5 MT
• Power consumption15 HP
• Control system And makePLC/ Fuji
• Max OD Coil1400 mm
• Shaft materialEN-9
• Line Speed20 m/min
• Input And Raw materialCoil Form material / PPGI & GL
• Roll MaterialEN 31
• Strip And coil width1250 mm
• Supply TypeSupplier, Retailer
