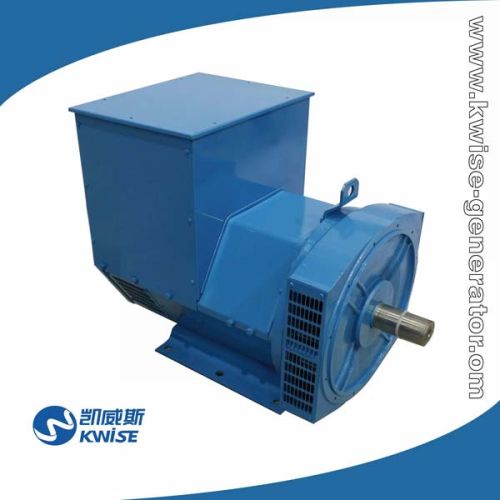

Phase Phase Double Bearing AC Brushless Generator

₹ 90.50 / 99999 99999 Set

MOQ1 Set(s)
Country of Origin380V/220V
Prime Power160kw/200kva
StandardsI EC60034,NEMA MG1-32,IS08528,CSA C22.2-100,VDE 0530,GB755
Telephone InterferenceTIF<50
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of Origin380V/220V
Power Factor0.8
Size(mm)1130*630*950
Duty/AmbeientContinuous/40 degree
Telephone InterferenceTIF<50
Telephone InterferenceTHF<2%
Waveform DistortionNo load<1.5%
AVR:SX460
Protect LevelIP23
StandardsI EC60034,NEMA MG1-32,IS08528,CSA C22.2-100,VDE 0530,GB755
ModelS274G160D9
Insulation LevelClass H
Frequency50HZ
Prime Power160kw/200kva
Weight(kgs)640
Standby Power176kw/220kva
Efficiency93%
Winding Leads12

We are offering phase phase double bearing ac brushless generator.
1. Our factory is listed on no.2 on size and equipments in china for alternators. What is more we only produce alternators in our factory.
2. We have most advanced production and test equipments.
3. All the raw materials we use inside generators are from best suppliers, can meet class h insulation,such as ucb bearings,germany elantas lacqure, isovolta insulation paper,silicon sheets from wuhan steel group etc
4. The design of alternators are quite perfect, the air gap between stator and rotor is very narrow. So the waveform is more reliable and stable.
