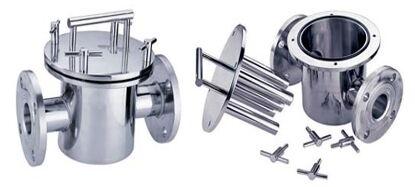

Pipe Magnetic Liquid Filter

We offer pipe magnetic liquid filter.
Specifications
1. N style 12000 gs, e style 8000gs
2. Standard working temperature 80
3. Max 80 - 350
4. Food, chemical material
general description:
liquid magnetic trap or magnetic liqid filters are designed for liquid or sem-lquid flow systems to remove ferous contamination from liquid with different viscosity level. They preseve product purity by removing small contaminants, provide magnetic protection for lquid lines and processing equipments.
featurs:
1. Many different styles arevailable for different materials.
2. The max magnetic strength can reach 12,000gs for n style, 8000gs for e style.
3. Standard working temperature ≤ 80°c, max working temperature can be chosen from 80°c to 350°c as the same with magetic bars if needed.
4. Connection can be through ferrule, bolt plate, flange or uneven head, etc.
5. Stainless steel 304 or316l is available for shel material.
6. Properly designed magnetic configuraion ensures maximum magnetic effect without impeding liquid flow.
7. Pressure design or other special requirement can be custom made.
1. N style liquid magnetic trap
magnetic strength: up to the highest 12,000gs(1.2t)
2. Fast connection style magnetic trap
good sealng results by using rubber seal washer and special shpe pipe wall designing, save cost and installaton time.
3. Easy-clean magnetic liquid filter
magnetic strengt: the highest is 8000gs (0.8t)
4. Insulation style magnetic liquid trap
insulation style liquid traps or filters have a jacket filled with hot water or oil that keep liquid warm enough wen it pss through the taps. Ideal choice for chocolate, syrups, jams and sauces to removing ferrous contamination.
