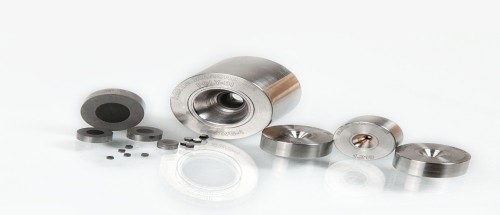

Parth Diamond Die Polycrystalline Diamond Dies

Get Latest Price

Sold By : Parth Diamond Die Works

Send Inquiry

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

When die life and wire production efficiency take precedent over wire surface finish, consider a Poly Di wire die.

Poly-Di wire dies are manufactured with polycrystalline diamonds, a durable synthetic material with a highly polished surface finish that minimizes friction for an exceptional resistance to die wear, cracking and breakage.

You get significantly longer die life, excellent wire roundness and highly predictable die wear with a good wire surface finish.

Size range

0.050 mm – 15.00 mm

Advantages

Maximum die life provides highest production efficiency with less downtime.
Available in a wide range of grain and blank sizes.
Excellent resistance to die fracture and breakage
Even, predictable die wear.

Applications

Nonferrous wire, especially larger sizes where demanding wear is a problem, but surface finish is less critical.

Typical Markets

Aluminum wire, copper wire, stainless steel wire, tire cord, welding wire, galvanized steel wire and saw wire.

Recommendation Of Reduction Angles By Material
Elongation (L)	Area Reduction (B)	Application
Elongation (L)	Area Reduction (B)	Aluminium Silver Gold Lead Zinc	Copper Al Alloys	Hard Al Alloys NI-Cr Alloys	Cu Alloys Brass Non Alloyed Steels C < 0,4% Stainless Steel	Non Alloyed Steels C > 0,4% Molybdenum Stainless Steel Alloys	Cu Alloy Brass Non Alloyed Steels C < 0,4% Iron Dry Drawing	Non Alloyed Steels C > 0,4% Alloyed Steels Dry Drawing	Hot Drawing Of Tungsten
%	%	1	2	3	4	5	6	7	8
5-9	5-8	14	12	10	9	8	7	6	10
9-14	8-12	16	14	12	11	10	9	8	10
14-19	12-16	18	16	14	13	12	11	10	12
19-33	16-25	21	18	18	16	15	14	12	12
33-54	25-35	24	22	20	19	18	17	15	14
54-69	35-45					22	20	18
