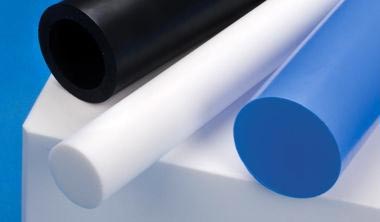

PTFE Extruded Rods

Sold By : Paras Traders

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

We have carved a niche as one of the salient teflon PTFE rods manufacturers in India. There are two kinds of PTFE Extruded Rods to offer. One is manufactured by Paste extruding method in the diameter from 4 to 9mm and the other is made by ram extruding method in the diameter from 10 to 120mm; rods over the diameter of 300mm are manufactured by molding. PTFE is the most chemical-resistant of all known plastics. It does not age. PTFE has a wide range of practicable temperature from 180 -/+ 260 and a wax-like surface to which anything hardly sticks. PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.

Applications:
Our PTFE plastic extruded rods are used in electrical insulation, seal, antisticking materials.

SPECIFICATIONS

Diameter(mm)		Length(mm)
Nominal	Tolerance	Nominal	Tolerance
4,5,6	+0.48	100	+0.2
7,8,9	+0.58
10,13,15,16,18	+1.10	1000mm-3000mm	+1mm
20,25,30	+1.30
35,40,45,50	+1.60
50-100	+2.00	1000mm-3000mm	+2.50
101-120	+2.50
121-300	+3.0	<300	+2.0

MAIN PROPERTIES

Properties	Unit	Result
Apparent density	g/cm³	2.10¡^a2.30
Tensile strength (min)	MPa	14.0
Ultimate elongation (min)	%	140
