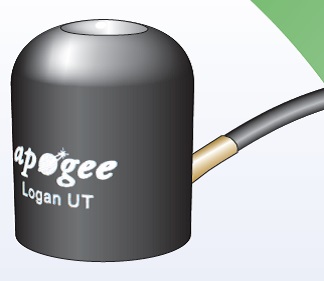

QT-SQ200 PAR Data Logger

Application
The five photosynthetic reactions of plants, including photosynthesis, pigment synthesis, photoperiodicity, phototaxis and morphological mutation, all happen in the wavelength range of 400~700nm. Thus the wavelength in 400 ~ 700nm of radiation is called Photosynthetically Active Radiation (PAR), its symbol is Qp and its unit is Wm2. PAR is the energy source of the plant life activities, organic matter synthesis and yield formation.
QT-SQ200 PAR Data Logger
Features
GPS coordination can be recorded
Record data Automatically or manually
Wireless data transmission via Wi-Fi
Recognize sensors by two-dimensional code
Automatically recognize connected sensors
Terminal memory card is up to 32G
Display real-time data and curve of recorded data
Export data to Excel for analysis
Technical parameters
SQ200
Technical parameters
Absolute accuracy
±5%
Homogeneity
±3%
Repeatability
±1%
Application
Measurement of photon flux
2.5V output
Output：0～2.5V（2.0V＝2000μmol m-2 s-1）
Power supply：2.5～5.5VDC
Sensitivity：1.00μmol m-2 s-1 mV
Current consumption
285μA
Operating environment
- 40 to 55 °C; 0 to 100% RH
Cable length
3 m of shielded cable
Android devices
Specifications
CPU
Quad-core：1.3GHz
Operating system
Android 4.2
ROM
4G
RAM
1G
Extended memory
Memory up to 32G
Screen Size
5.0 In.
Screen Resolution
960 * 540
Operation Mode
Touch screen
Screen color support
16 million colors
