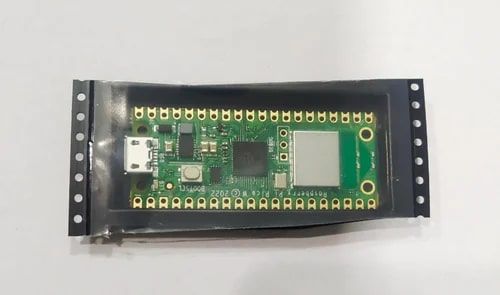

Raspberry Pi Pico W Board

₹ 501 / Piece

MOQ100 Piece
SD card supportNo
ProcessorAt the heart of each product is RP2040, a Raspberry Pi-designed chip, which features two ARM Cortex-
Operating Power3.3v
Model No./NameRaspberry Pi Pico Series
Supply TypeManufacturer, Exporter, Supplier, Importer, Trader
Preferred Buyer Location All over the world

Company Information

4.0/5

Ask for more detail from the seller

Report incorrect details

Digital I/O Pins30 GPIO pins,23 GPIO are digital-only, with three also being ADC capable.
Warranty1 Year
SD card supportNo
Operating Power3.3v
ProcessorAt the heart of each product is RP2040, a Raspberry Pi-designed chip, which features two ARM Cortex-
Model No./NameRaspberry Pi Pico Series

RP2040 microcontroller with 2MB of flash memory
On-board single-band 2.4GHz wireless interfaces (802.11n)
Micro USB B port for power and data (and for reprogramming the flash)
40 pin 21mmx51mm ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
23 GPIO are digital-only, with three also being ADC capable
Can be surface mounted as a module
3-pin ARM serial wire debug (SWD) port
Simple yet highly flexible power supply architecture
Various options for easily powering the unit from micro USB, external supplies or batteries
High quality, low cost, high availability
Comprehensive SDK, software examples, and documentation
Dual-core Cortex M0+ at up to 133MHz
On-chip PLL allows variable core frequency
264kByte multi-bank high-performance SRAM
