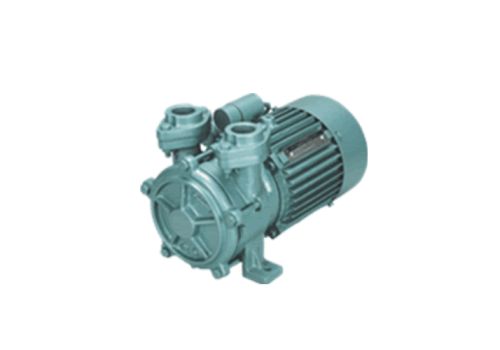

Regenerative Monoset Pumps

Get Latest Price

Power0.37kW – 0.75 kW (0.5HP& 1HP)
Maximum suction lift in metre8 (slow speed )& 3.5 (High Speed)
Maximum total head45 mtrs
Nominal Pump size in inches (Suction x Delivery )1 &1
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Power0.37kW – 0.75 kW (0.5HP& 1HP)
Motor FrameCast Iron / Mild Steel
VersionsSingle phase, 200-240 V, 50 Hz, A.C Supply capacitor start and capacitor run (CSCR) and motor is incorporated with thermal cutout relay ( motor protector)
Maximum Ambient Temperature40o c
Degree of protection IP 44
SealingMechanical Seal (Carbon & Ceramic)
Class of Insulation'A'
SealingMechanical Seal (Carbon & Ceramic)
Type of dutyS1 (Continuous)
Maximum total head45 mtrs
Maximum liquid temperature33o c
Maximum flow rate1.2 lps (4.3 M3 / Hr)
Frequency / Speed50 Hz / 1440 RPM
Part NameMaterial
Direction of RotationClockwise viewed from driving end
ShaftStainless Steel
ImpellerBrass
Nominal Pump size in inches (Suction x Delivery )1 &1
Pump CasingCast Iron
Maximum suction lift in metre8 (slow speed )& 3.5 (High Speed)
Maximum operating Pressure4.5 bar

Regenerative Monoset Pumps - ARM & ASM series

C.R.I. Regenerative monoset pump's volute chamber and impellers are designed to give the best possible hydraulic efficiency and suction lift characteristics. Sealing is by means of a bellows mechanical seal made of carbon and ceramic is fitted over the shaft, which is ground to close tolerance.

These pumps are power-driven by a totally enclosed fan cooled A.C. induction two-pole and four pole motor, suitable for continuous duty. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. Dynamically balanced rotor ensures vibration free and noise free operations and increase the life of the bearings and seal.

Features
