Remote Control Ir Repeater, USB Adapter, Brand Name : YZC

we are offering Remote Control Ir Repeater/ Ir Extender with 1 Receiver & 1 Emitter ( for 1 Av Device ) & Usb 5v Adaptor.
Remote Control IR Repeater can be used with weak IR Remote control signal from players such as IPTV. CD/VCD/DVD/ Blu-ray, Home System, Television, Setup box, recorder, CATV, Karaoke system, etc. It is also recommended for Players/ Equipments which are concealed in console or cabinet.

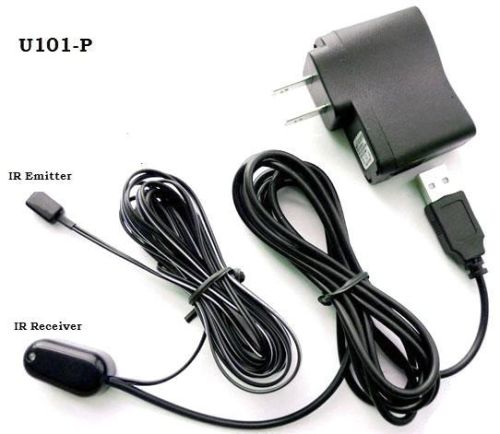

PACKAGES :
1. USB Adaptor 5V 500mA
Our U series which is powered by USB adaptor ( Included ) can also be powered by connecting the USB cable to the USB port on your AV Equipment.
2. IR Receiving Head is distributing :
(1). USB ( use to connect to USB 5V adaptor or AV devices for power ) Length : 2m
(2). IR Emitter ( Emitter to be stuck on the IR Point of your AV equipment ) length : 3m
INSTALLATION :
1. Clean the surface of your AV equipment. Stick the IR Emitter on the IR point of your AV Equipment
2. Place the IR Receiver such a way that it is facing your remote control. It is advisable to place away from Plasma or CCFL screen as it may affect the remote control signal.
3. Connect the USB to USB Adaptor/ USB port of AV Equipment for power
4. Power up & all is ready to go.
TECHNICAL SPECIFICATION :
Receiving Frequency ( Broadband ) : 34KHz ~ 60KHz
Emitting Frequency ( Broadband ) : 38 KHz & 56KHz
Receiving Distance : 8 meter
Emitting Distance : 10-20 cm
Power Consumption :
Dimension for Receiver & Emitter : 31 (L) ×17 (W) ×13 (H) mm, 13 (L) ×8 (W) ×5. 5 (H) mm
Input AC 100-240V/ Output DC 5V : USB 5V 500mA
