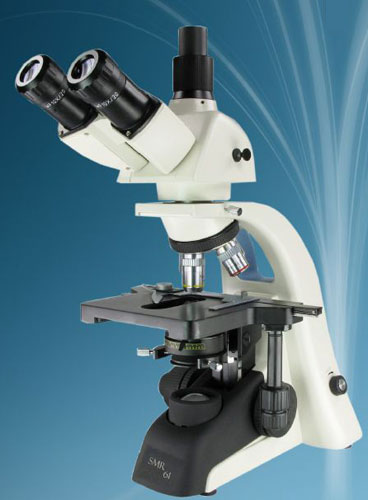

Research Microscope

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We offer Research Microscope that are extensively used in various institutions. Our research microscope has a stable construction and precise design that assures accurate results. The research microscope is ideal for research and lab use. The clients can avail the research microscope at very competitive price. Features : high resolutionadvanced color revivificationimage with best performanceeasy to installhigh definitionstable imagelittle volume

View More Details

Send Enquiry

Product Details

Technical Specifications

Stand	C shaped, corrosion resistant, Anti mould treated
Viewing Head	Gemel-Style Binocular / Trinocular Tube, Inclined 30 degree ,360 degree Rotatable, Interpupillary Distance:55-75mm
Eyepieces	High Eyepoint, Wide Field, Viewing Adjustable Wide Field Eyepieces 1 WFIOX (Field of Line 20mm), Optional WF16X, WF20X
Nosepiece	Inner inclined Quadruple Nosepiece or Quintuple Nosepiece
Objectives	SA Series -Semi-Plan Achromatic Objectives: 4X,10X,40X(S),100(O,S) PA Series- Plan Achromatic Objectives: 4X,10X,40X(S),100(O,S) IPA series- Infinite Plan Achromatic Objectives: 4X,1OX,40X(S),100(O,S)
Working Stage	Double Layers with Mechanical Sliding Stage, Triangle Iron Moving Up and Down Area:160mm x 142mm, Moving Range;76mm(X) x 52mm(Y)
Focusing System	Coarse and Fine Focusing Coaxal , Coarse Degree of Tightness Basised of Your Custom, Coarse Range: 25mm, Fine Precision Scale: 0.002mm
Condenser	Abbe Condenser N.A = 1.25 with Iris Diaphragm and Filter Holder, Moving Up and Down, Center Adjustable
Illumination	Built-in Critical, Halogen Lamp,12V/20W, Brightness Adjustable Optional LED Light Source, Brightness Adjustable
Optional Objectives	25X, 60X ( S ).Camera Adapter, CCD Adapter, Digital Camera Adapter, Dark Field Unit, Phase Contrast Unit, Polarizing Unit, EPI- Fluorescence
