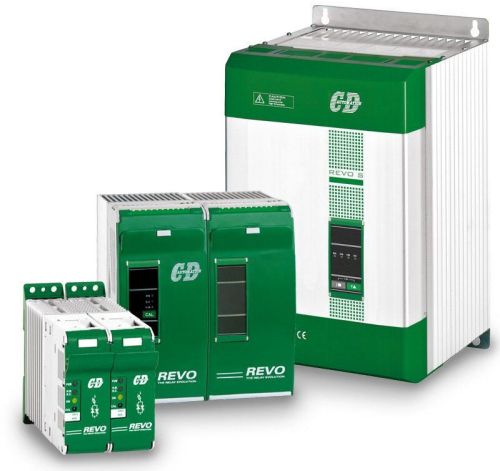

50Hz Revo S Three Phase Static Relay, Voltage : 220V for Industrial

Details :

• REVO S 2PH is a three phases static relay suitable for driving loads with star connection without neutral or delta, on two phases. The unit has been designed to save space and work.
• Current range – 30A, 35A, 40A, 60A, 75A, 90A, 120A, 150A, 180A, 210A, 300A, 400A, 450A, 500A, 600A, 700A, 800A
• Voltage range 480V, 600V and 690V (starting from 60A)
• Fully isolated from the power
• Zero crossing firing mode (ZC) or Burst Firing (4, 8 or 16 cycles selectable)
• Logic input signal 4 to 30Vdc typical (SSR) plus 4-20mA or 0-10Vdc Linear input as an option
• Constant current drain, independent of supply voltage with SSR input
• Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
• Side by side mounting
• Special design Heatsink with high dissipation value
• IP20 protection
• Complies with EMC, EAC, cULus® 508 Listed and cUL® listed up to 700A as an option. UL® listed for 800A as an option.
