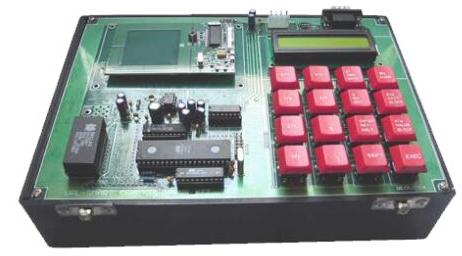

RFID Trainer (VPL-RFID) VPL-RFID

Get Latest Price

Sold By : VPL Infotech & Consultants

Send Inquiry

Product Specifications

Supply Voltageincluded in the system operates at 220V AC.
Operating RangeLess than 10 cm
High data integrity16 Bit CRC, parity, bit coding, bit counting
Fast data transfer106 kbit/s
AntennaInductively coupled coil type
Typical ticketing transaction<100 ms (including backup management)
Microcontroller89C51RD2 with 1MB RAM and 64 KByte ROM
Protocol supportISO 14443A, ISO 14443B, ISO 15693
Operating frequency13.56 MHz Modulation type
Supply TypeManufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Product Overview

EEPROM:

1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
User definable access conditions for each memory block
Data retention of 10 years
Write endurance 100.000 cycles

SECURITY:

Mutual three pass authentication (ISO/IEC DIS9798-2)
Data encryption on RF-channel with replay attach protection
Individual set of two keys per sector (per application) to support multi-application with key hierarchy
Unique serial number for each device
Transport key protects access to EEPROM on chip delivery

MEMORY OPERATIONS:

Read Block
Write Block
Document: Decrements the contents of block and stores the result in temporary internal data register.
Increment: Increments the contents of block and stores the result in data register.
Restore: Move the contents of block into the data register
Transfer: Writes the contents of the temporary internal data register to a value block.

FEATURES

Contactless transmission of data and supply energy (no battery needed)
True anticollision
