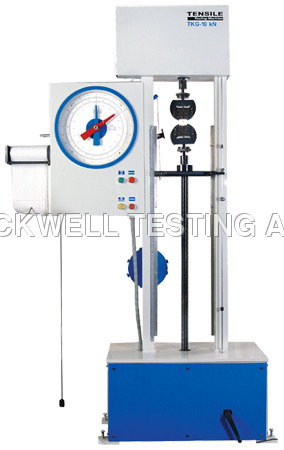

ROCKWELL Computerised Tensile Testing Machine

Brand NameROCKWELL
Supply TypeSupplier, Retailer
Preferred Buyer Location India only

Computerized Tensile Testing Machines : The Computerized Tensile Testing Machines we provide to the clients have vast range of Grips and attachments in them. Some of their features are mentioned....

View More Details

Send Enquiry

Product Details

Computerized Tensile Testing Machines :

The Computerized Tensile Testing Machines we provide to the clients have vast range of Grips and attachments in them.

Some of their features are mentioned below :

These Tensile Testers conform to the standards i.e. IS,BS, ASTM, DIN or ISO. They are now easily available for industries like Automotive, Textile, Paper, Steel, Food & Packaging, Aero Space, Defence, Wire & Cable Industries etc.
The machines are entirely suitable for testing a wide range of materials such as rubbers, rexins, woods, plywood, plastics, ceramics, cardboard, latex, ferrous, composites, metals, non-ferrous metals and so on.
Have various forms like round and flat. Easily applicable for thread, ropes, wires, dumbbells, fabric, belts, strips, etc.
The conduct variety of tests like Tension, Compression, Linear Bonding, Cross breaking, Bending, Shear tests, Gripping / Peeling strength of adhesives & tapes, etc.
The special fixtures have been added in the machines so as to suit variety of material and shapes.

Important Notes :

While receiving orders for the machines we take an extensive care to select the machines which have proper features.
The details which are appointed are capacity, traverse speeds, grip separation etc.
We ensure that testing of the materials is in conformity with the standards followed-
Hand Operated Cutting Press are of Size 150 X 150 mm.

Products More Details :

Die overall length 50mm as per IS:34 Part I & II, IS:5831.
Die overall length 75mm as per IS:3400 Part I, IS:434 PART I & II, IS:5831
Die overall length 115mm as per IS:3400 Part I , IS:2414, IS:2415 & IS:443
Die overall length 152mm as per IS:2076

Specifications Of Analogue Tensile Testing Machine

Maximum Capacity		Model TKG				Model TKG		Model TKG
		200 N	500 N	1000 N	2500 N	5000 N	10 N	25 kN	50 kN
	I	0-50 N	0-100 N	0-200 N	0-500 N	0-1000 N	0-2 kN	0-5 kN	0-10 kN
Measuring Range	II	0-100 N	0-250 N	0-500 N	0-1000 N	0-2500 N	0-5 kN	0-10 kN	0-25 kN
	III	1-200 N	0-500 N	0-1000 N	0-2500 N	0-5000 N	0-10 kN	0-25 kN	0-50 kN
	I	0.1 N	0.2 N	0.4 N	1.0 N	2.0 N	0.004 kN	0.01 kN	0.02 kN
Least Count	II	0.2 N	0.5 N	1.0 N	2.0 N	5.0 N	0.01 kN	0.02 kN	0.05 kN
	III	0.4 N	1.0 N	0.2 N	10.0 N	10.0 N	0.02 kN	0.05 kN	0.10 kN
Elongation Scale
Least Count		1 mm				1 mm		1 mm
Grip Seperation		-
Minimum		25 mm				25 mm		25 mm
Maximum		1000 mm				750 mm		600 mm
Traverse Speeds		10 Speeds of 50,100,150,200,225, 250,300,400,450 & 500 mm/ min				100 mm /min		25 mm/min
(Standard Speeds)
Optional Speeds		Additional Speed of 50 mm/min
		Additional Speed of 500 mm/min
		Alternate Speed of 1.3 mm/min.in place of 100 mm/min						Alternate Speed of 1.3 mm/min.in place of 25 mm/min.
		10 Speeds of 50,100,150,200,225,250,300,400,450 & 500 mm/min.						10 Speeds of 50,100,150,200,225,250,300,400,450 & 500 mm/min.
Optional Variable speed (DC) drive stepless variation		50 to 500 mm/min.				10 to 100 mm/min		2.5 to 25 mm/min.
H.P.(for standard speed)		0.25 /0.5				0.5		0.5
Supply		3 Phase,440 Volts, 50 Cycles, A.C. (For DC Drive Machines- Single Phase, 220 Volts, 50 Cycles, D.C.)
Over Travel Safety		Provided with each model
Load Elongation Recorder		Provided with each model
Specifications of Digital / Computerised Tensile Testing Machine
Maximum Capacity	Model TKG				Model TKG		Model TKG
	200 N	500 N	1000 N	2500 N	5000 N	10 N	25 kN	50 kN
Measuring Range	0-200 N	0-500 N	0-1000 N	0-2500 N	0-5000 N	0-10 kN	0-25 kN	0-50 kN
Least Count	0.0.2 N	0.05 N	0.1	0.25N	0.5N	1.0 N	2.5 N	5.0 N
Displacement Resolution	0.1 mm				0.1 mm		0.1 mm
Grip Separation
Minimum	25 mm				25 mm		25 mm
Maximum	1000 mm				750 mm		600 mm
Traverse Speeds	10 Speeds of 50,100,150,200,225,250,300,400,450,& 500 mm/min.				100 mm		25 mm/min
( Standard Speeds)
Optional Speeds					Additional Speed of 50 mm/min
					Additional Speed of 500 mm/min
					Alternate Speed of 1.3 mm/min. in place of 100 mm/min.		Alternate Speed of 1.3 mm/min, in place of 25mm/min
					10 speeds of 50,100,150,200.225.250,300,400,450 & 500 mm/min.		10 speeds of 50,100,150,200,225,250,300,400,450 & 500 mm/min.
Optional Variable speed	50 to 500 mm/min.				10 to 100 mm/min.		2.5 to 25 mm/min
(DC) drive stepless variation
H.P.( for standard speed)	0.25/ 0.5				0.5		0.5
Supply	3 Phase, 440 Volts, 50 Cycles, A.C.( For DC Drive Machines- Single Phase, 220 Volts, 50 Cycles, D.C. )
Over Travel Safety	Provided with each model
