ROTARY BELT SCRAPER

Kaveri Rotary Belt Scraper are engineered for belts handling Calcinated materials like Clinker, Coke, Alumina and other fine powdery substances which are susceptible to thermal cracks, resulting in fine powder getting stuck between the cracks, and falling throughout the length of the conveyor, due to flappring of the belt.

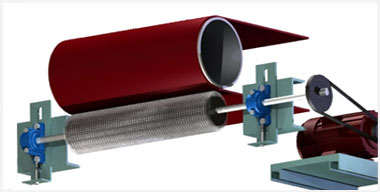

KAVERI Rotary Belt Scraper Consists of a special brush arrangement designed for fitment below the Head Pulley on the return side to enable the brushed off material to fall into the discharge chute. It consists of a Motorised Power Driven shaft supported on Anti-Friction bearing blocks, to which brush rolls are fitted. The direction of rotation is opposite to that of the return belt travel.

The V-Belt drive ensures that right peripheral speed of the Rotary Scraper can be achieved to get maximum cleaning efficiency.

• Very effective for CLIP JOINT / THERMAL CRACKED belts
• Protects environment and No health hazard
• Protects Idler Rollers and increases the life of conveyor belt
• Suitable for all belts
• Motorised V Belt Drive type
• Segmented and self-locking brushes
• Easy to fit and remove
