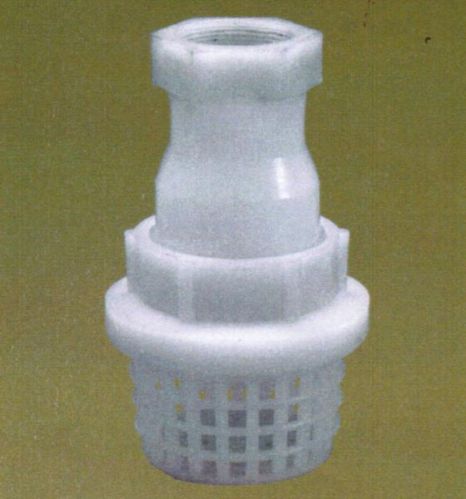

Screw End PP Foot Valve

Sold By : Mukesh Pipes & Fittings

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Our company also offers high quality Screw End PP Foot Valve. The range of efficient Screw End PP Foot Valves offered by us is designed to be durable and low on maintenance. We offer our range of Screw End PP Foot Valve at the best prices in the market. Technical Specifications :

Construction : Ball type, Soft Seated Design
Manufacturing Standard : As per manufacturer's standards
End connections : Screw End (BSP thread)

Available M.O.C : PP (Polypropylene) ISOTactic PP End connection : Screw End (BSP thread) Working pressure :

Body 150PSi
Seat 100 Psi
Temp. 80C

Available Sizes

Size (In)	Size (Mm)	A / F	Thds.	H	T
1"	25	54	1"	195	22
11/2"	40	68	11/2"	218	24
2"	50	78	2"	218	24
21/2"	65	93	21/2"	303	29
3"	80	108	3"	303	29
4"	100	135	4"	377	32

Details

Part Details	Material Option	Qty.
Top body	PP / Isopp	1
Bottom Body	PP / Isopp	1
Stainer / Zaali	PP/ISopp	1
Ball	M.S. Pp/ Isopp	1
Ball Ring	PP / Isopp	1
Seat ring	Necoprene Rubber	1
