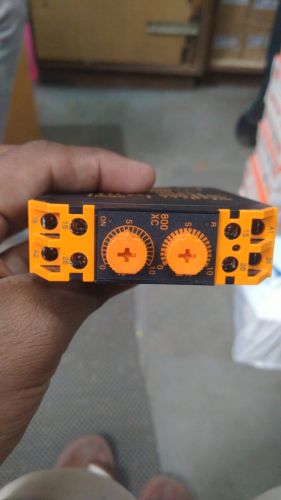

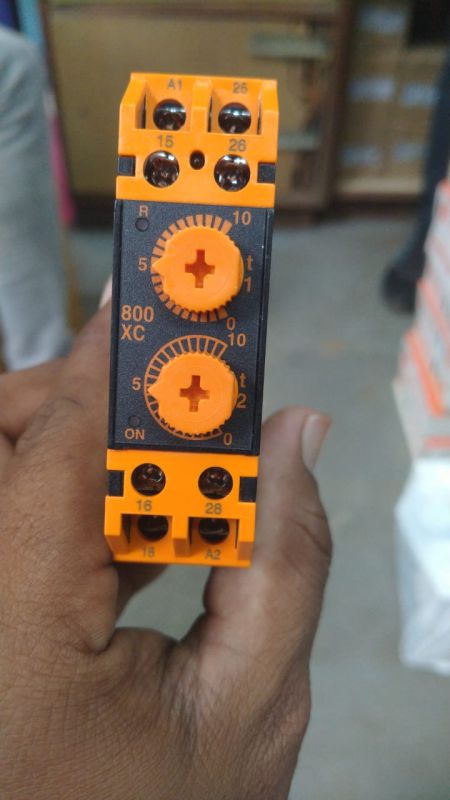

Selec 800xc Din Rail Timer

Cyclic Timer with Unequal ON & OFF Time: Allows different durations for ON and OFF cycles.

Operating Modes: Asymmetrical cyclic operation with options to start ON first or OFF first.

LED Indicators: Shows Power ON and Relay ON status.

Universal Supply Voltage: Accepts 20–240V AC and 12–240V DC.

Mounting: DIN rail mount (22.5mm wide), compact and easy to install.

Output Contacts: 2 Changeover (DPDT) contacts rated at 5A @ 230V AC / 24V DC (resistive load).

Time Ranges:

• ON Time: 0–1 sec/min/hr or 0–10 sec/min/hr

• • OFF Time: 0–1 sec/min/hr or 0–10 sec/min/hr

• Accuracy:

  • Setting: ±0.1 of set time or ±50 ms

  • Repeat: ±0.1%

• Environmental Ratings:

  • Operating Temperature: 0°C to 50°C

  • Storage Temperature: -20°C to 75°C

  • Humidity: Up to 95% RH (non-condensing)

  • Certifications: CE, UL, and compliant with EMI/EMC standards like IEC 61000 series
