Excella Electronis Sensor

Sold By : Excella Electronis

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

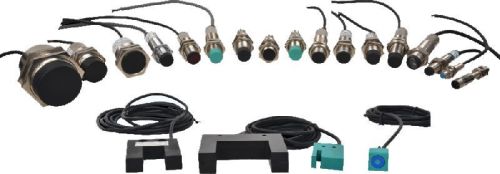

We have a wide range of high performance sensor that provides solution to many industrial detection problems. The most commonly used proximity sensor is the inductive type, which generates an electromagnetic field to sense metal objects passing close to its face.

Features:

Threaded Nickel - plated brass sleeve.
Short circuit Protection.
Reverse Polarity Protection Suitable for Low & High temperature application.

DC INDUCTIVE PROXIMITY SENSORS:

Diameter: M6.5 to 80 mm
Length: 30mm to 100mm
Logic: NPN / PNP
Contact: NO / NC
I Max: 300 mA
Sensing distance: 1 - 35 mm (Depend upon size)

AC INDUCTIVE PROXIMITY SENSORS:

Diameter: M12 to 50 mm
Length: 60mm to 100mm
Logic: NO / NC
Operating Voltage: 90-270VAC
I Max: 500 mA
Sensing distance: 1 - 35 mm (Depend upon size)

IR SENSORS:

Diffuse (Reflective)
Retro Reflective
Fork Sensors
Through Beam Sensor
I Max: 250mA
Sensing distance: 25mm - 4000 mm

Mag.TTL Sensors:

Diameter : M12 X 30mmL
Length : 50 -100mmL
Logic:NPN /PNP
Contact : NO/ NC
I Max:250 mA
Sensing distance: 0.5 - 4 mm

Sensor Small length is also possible | Control Unit for regular sensors with relay output | High Ambient temperature sensors are available Rectangular / Fork shape sensor is available | High switching frequency sensors are available | Indian / Imported substitute also available
