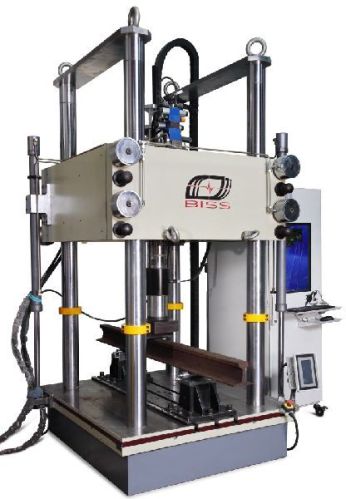

    Servo Hydraulic Universal Testing Machines Magnum Series

    Servo Hydraulic Universal Testing Machines Magnum Series

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    Features Load Capacities 500kN to 3000kN static & dynamic Frame stiffness 1100kN/mm (optionally up to 6600kN/mm) Up to 300 mm stroke servo-actuators with 1micron resolution Works out of 3 Ǿ 415....
    View More Details
    Send Enquiry

    Company Information

    Measure India Corporation Private Limitedverified-icon
    location Habsiguda, Hyderabad, Telangana
    View Number
    • calendar Member Since 11 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    Features

    • Load Capacities 500kN to 3000kN static & dynamic
    • Frame stiffness 1100kN/mm (optionally up to 6600kN/mm)
    • Up to 300 mm stroke servo-actuators with 1micron resolution
    • Works out of 3 Ǿ 415 VAC
    • Next generation DSP based servo controller with 32 bit data acquisition
    • 24 kHz data acqusition & 24 kHz servo loop control
    • Accuracy ± 0.5% of read out value for load, strain & stroke
    • 0-100 Hz cyclic frequency operation. Frequency response depends on combination of power pack & servo valve flow rate
    • Power pack rating 11 LPM to 500 LPM
    Applications
    • Tension/Compression/3 point bend
    • Static and Fatigue Tests
    • Concrete Cubes
    • Concrete beams
    • Rock Mechanics
    • Rails
    • I-Channels
    • Pipes
    • High Strain Rate
