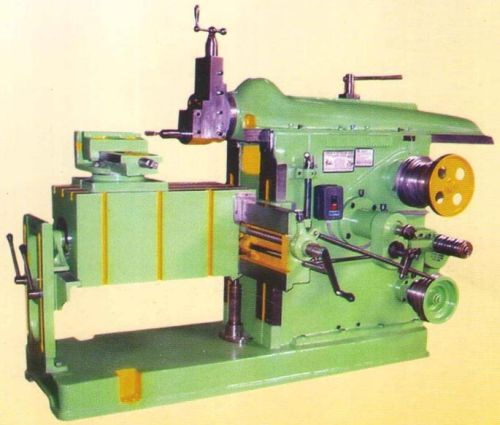

Contact SupplierFor maximum customer satisfaction, we are engaged in providing a comprehensive range of Shaping Machine. We are a remarkable Manufacturer and Supplier of Shaping Machine from Batala in Punjab. With attributes like commendable functionality and longer service life, Shaping Machine is widely demanded by the buyers. Shaping Machine is user friendly and does not require frequent repairing. We offer Shaping Machine to the buyers at highly competitive price.
Features :
Inspection : Before dispatch every machine is throughout checked and inspected by Competent Engineer
Accessories in Extra Cost :
Particular | Unit | SP-12 | SP-18 | SP-26 | SP-32 | SP-36 | SP-40 |
---|---|---|---|---|---|---|---|
Length of Stroke | mm | 300 | 455 | 660 | 780 | 915 | 1040 |
Length of Ram without tool slide | mm | 765 | 940 | 1340 | 1550 | 1750 | 1900 |
Ram Bearing in Column | mm | 485 | 715 | 810 | 910 | 1000 | 1100 |
Ram Bearing width | mm | 220 | 260 | 320 | 320 | 350 | 421 |
Tool Slide Traverse | mm | 130 | 152 | 185 | 200 | 210 | 226 |
Length of Cross Slide | mm | 610 | 715 | 965 | 1070 | 1130 | 1270 |
Width of Cross Slide | mm | 230 | 230 | 320 | 320 | 370 | 380 |
Horizontal Traverse of Table | mm | 250 | 350 | 600 | 760 | 850 | 1015 |
No. of Speed to Ram | 3 | 3 | 3 | 3 | 3 | 3 | |
Tool Holder Takes Tool | mm | 20 | 20 | 25 | 25 | 30 | 30 |
Size of the Plate | mm | 100x400 | 1150x450 | 1630x630 | 1820x650 | 2140x650 | 2310x765 |
Overall size of the Machine | - | - | - | 2440x1220 | 2650x1300 | 2800x1400 | 3175x1475 |
H.P. Required | H.P. | 1 | 2 | 3 | 3 | 3 | 5 |
T-slots | mm | 12 | 12 | 16 | 16 | 16 | 20 |
No. of Ram Stroke per Min. (Motorised Geared) | - | 6 | 6 | 6 | 6 | 6 | 6 |
Approximate Weight | - | 8Q | 13Q | 17Q | 20Q | 28Q | 32Q |
Items | Motorised Geared | Head Belt Driven |
---|---|---|
Motor drive attachment | 1 | 1 |
Vice | 1 | 1 |
Handle | 1 | 1 |
Motor Pulley | 1 | 1 |
