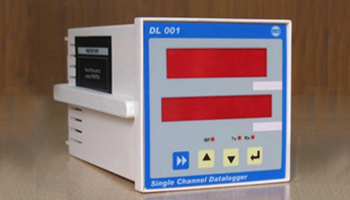

Single Channel Data Logger

Get Latest Price

Display7 segment 1/2" LED, 5 digit process value. 8 digit 0.3" display for programming.
Transmitter Power Supply24 VDC,100 mA power supply is made available for the external transmitter
Input4- 20 mA DC linear.
Supply230VAC / 110VAC, +10 %, single phase, 50 Hz
Serial CommunicationSERIAL port RS232 with ASCII protocol.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Scan Electronic Systems

Shukrawar Peth, Pune, Maharashtra

View Number

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Display7 segment 1/2" LED, 5 digit process value. 8 digit 0.3" display for programming.
Input4- 20 mA DC linear.
Supply230VAC / 110VAC, +10 %, single phase, 50 Hz
Transmitter Power Supply24 VDC,100 mA power supply is made available for the external transmitter
Serial CommunicationSERIAL port RS232 with ASCII protocol.

Single channel data logger accepts 4 - 20 mADC linear input, the most commonly used signal in process industry. 7 segment RED LED display makes it visible from long distance. Pendrive(USB) Facility is available optionally . 4GB pen drive can be connected which is equivalent to 100 million readings per channel.. Single channel Data logger also having facility of Option Digital input. Serial port RS232 for downloading data to PC with ASCII protocol. Data Downloading Software with ASCII protocol comes Free with unit.

Technical Specifications
Input	4- 20 mA DC linear.
Display	7 segment 1/2" LED, 5 digit process value. 8 digit 0.3" display for programming.
Supply	230VAC / 110VAC, +10 %, single phase, 50 Hz
Transmitter Power Supply	24 VDC,100 mA power supply is made available for the external transmitter
Serial Communication	SERIAL port RS232 with ASCII protocol.
Data logging	Memory capacity of 65280 / 43520(for 4DI option) readings with Real Time Stamping. Logging interval programmable in minutes or seconds from 1 to 240.
Printer Port	Centronics compatible parallel printer port for DOT matrix printers only with online / offline printing.
Cabinet	Panel mounting ABS moulded cabinet Size - 96 x 96 x 165 mm ( H x W x D ) Cutout - 92 x 92 mm
