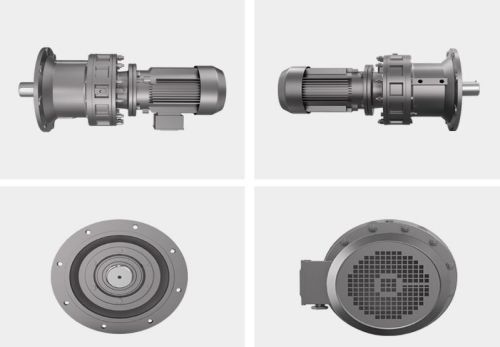

Single Stage Cycloidal Speed Reducer

1.      Product TechnicalData Single Satge Cycloidal Speed Reducer is a mechanism for reducing the speed ofan input shaft by a certain ratio. Single Satge Cycloidal Speed Reducer are capable of relatively high ratiosin compact sizes. Cycloidal Drive Gear Speed Reducer working principalis simple. The input shaft is mounted eccentrically to bearing causing thecycloidal disc to move in a circle. Cycloidal reducers disc will independentlyrotate around the bearing as it is pushed against the ring gear. The number ofpins on the ring gear is larger than the number of pins on the cycloidal disc.It need to accurate machining. This causes the cycloidal disc to rotate aroundthe bearing faster than the input shaft is moving it around, giving an overallrotation in the direction opposing the rotation of the input shaft. Cycloidal Drive Gear Speed Reducer has holes that are slightly larger than the output roller pinsthat go inside them. The output pins will move around in the holes to achievesteady rotation of the output shaft from the wobbling movement of the Cycloidal Drive Gear Speed Reducer. Output shaft and other parts are also available. 2.  The Features Of JIAYOU Cycloidal Drive Gear Speed Reducer 1. Highly Standard Modular Designed 2. Quality material ensures the product reliability 3. High Strength,Compact Dimension 4. Long Service Life 5.Low Noise 6. High Efficiency 7. Large radial loading ability 8. Axial load ability of up to 5%.
