Ferrite Core SMD Series SMPS Transformers Manufacturer in Pune Maharashtra India

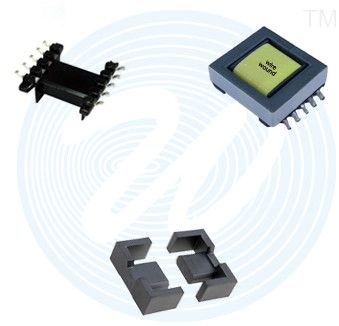

Ferrite Core SMD Series SMPS Transformers, Color : Black, Yellow

Name: SMD Series SMPS Transformers
SKU: EI-8164288
Price: 20 INR
Availability: InStock
Rating: 4.5 (30 reviews)

Price:

20 -

60 / Piece Get Latest Price

Minimum Order Quantity : 50 Piece
Sold By : Wirewound Electronics Private Limited

Send Inquiry

Product Specifications

MaterialFerrite Core
Packaging TypeBox
UsageTransformer for SMPS Power Supply
Number Of FlowerSMPS Transformers
SMD‑Series Core Sizes:SMD-EFD15 SMD-EFD20 SMD-EFD25
Dielectric Strength1.5 Kv
Leakage Inductance3%
Primary Inductance+/-5% to +/-10%
Temperature Range0°C To 70°C
Supply TypeManufacturer, Supplier

Preferred Buyer From : India only

Product Overview

Product Description

Features

Inductor with Single winding as per user design
Multiple section chokes are also available
Transformer with multiple windings and multiple wires as per user design
Primary inductance standard +/-10%, also available +/-5% on request
Leakage inductance below 3% of primary inductance
Dielectric strength Primary to Secondary min 1.5KV

Applications

Chokes for EMI applications
Transformer for LED drivers
Transformer for SMPS power supply

SMD‑Series Core Sizes:

SMD-EFD15
SMD-EFD20
SMD-EFD25

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Product Images

Company Overview

Manufacturer Of Mobile Charger Coils, Efd Series SMPS Transformers, Series EE SMPS Transformers, EE SMPS Transformers, EE Series SMPS Transformers, Edr Series SMPS Transformers, 10x30mm Ferrite Rod Core Inductors, 6x32mm Ferrite Rod Core Inductor, 5x20mm Ferrite Rod Core Inductor, 5x15mm Ferrite Rode Core Inductors, 5x12mm Ferrite Rod Core Inductor, EE 25X13X11mm Split Ferrite Cores, 25X13X7mm EE Ferrite Core, 25X13X7mm Ee Ferrite Cores, 25X9X6mm EE Ferrite Cores.
