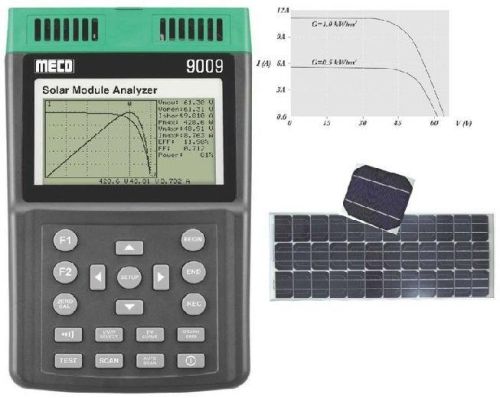

Solar Module Analyzer

I-V Curve Test for Solar Panel / Module / Cell
Max. Solar Cell/Module Power / Cell Power(Pmax) search by Auto-Scan
Capability: 60V, 12A
Best Resolution: 1mV , 1mA
Manual Single Point I-V Test
Max. Voltage (Vmaxp) at Pmax
Max. Current (Imaxp) at Pmax
Voltage at Open Circuit (Vopen)
Current at Short Circuit (Ishort)
I-V Curve with Cursor to Display each Data Point
Efficiency (%) Calculation of Solar Panel
Real Time data logging
RS232C (to USB Bridge) Cable for PC
Communicate with PC via USB Cable
AC Adaptor and Rechargable Lithium Battery
Memory Size : 100 Records
Sampling Time of Data logging : 0 ~ 99 min
Large LCD with Backlight
Applications Quality Control at Production Line, Warehouse or Site of Installation, Identify Requirements of Solar Power System, Maintenance of Solar Panels, Verify the Best Installation Angles of Solar Panels, Research and Development

Features:

DC Voltage Measurement 0 - 60V DC Current Measurement 0.01 - 12A
AC Adapter AC 110V or 220V input, DC 15V / 3A output
Environment 5C ~ 50C, ≤ 85% RH (Operating)
-20C ~ 60C, ≤ 75% RH (Storage)
