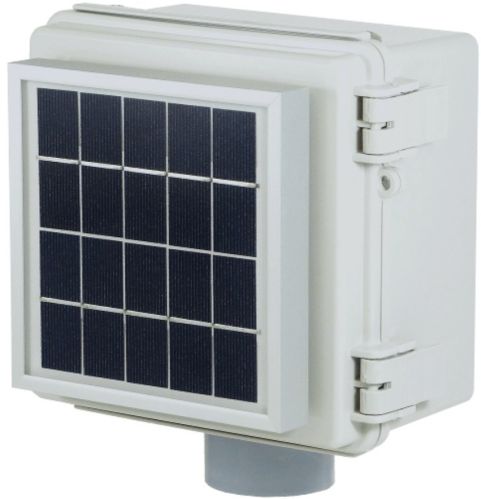

Solar SDI-12 Data Logger, Brand Name : Acclima

Solar-powered SDI-12 data recorder (data logger) with rechargeable Lithium-ion cell. Housed in UV weather resistant polycarbonate enclosure. Takes over 53,000 5-data point scans before it overwrites the oldest data. A micro USB cable, 45° PVC neck with terminal adapter, solar panel, and SDI-12 terminal plug are included.

Add to Cart

The Acclima Solar DataSnap is a simple-to-use standalone SDI-12 universal data logger with powerful features. It has a rugged, weather resistant, polycarbonate enclosure (NEMA 4) with a solar panel circuit that charges a lithium ion 18650 battery ensuring continuously reliable, long-term data logging.  It is designed to work with Acclima’s world renowned soil water content TDR and TDT SDI-12 sensors. It will also work with a wide range of third-party SDI-12 soil moisture sensors (probes or meters).

The Solar DataSnap will automatically detect and configure Acclima sensors with the click of a button in its free, downloadable Windows® software known as SnapView . This software allows a user to easily configure reading intervals for up to ten SDI-12 sensors. It will also work with a wide range of third-party SDI-12 sensors. It supports up to five data points per sensor (using the SDI-12 M! command). The software can synchronize data from multiple DataSnaps down to a Windows® PC through a USB connection with the Solar DataSnap. Data is easily exported for use in the form of CSV files which are are automatically generated and downloaded to a micro-USB thumb drive.

Key Features

• Accommodates up to 10 SDI-12 sensors
• Requires no SDI-12 programming knowledge
• Includes SnapView for Windows® PCs
• USB to SDI-12 bridge
• Short circuit protection
• Data logging of the first five data points with SDI-12 M! command
• Lithium-ion 18650 battery recharges with
  solar power
• Long-lasting rechargeable battery (3500 mAh, 3.7v)
• Battery power monitoring feature from SnapView
• Battery power low warning flash on power-up
  (green LED then red LED)
• Total memory capacity supports over 59,000
  scans with each scan storing up to five data points
• SDI-12 sensor compatibility
• Compatible with terminal software applications, like HyperTerminal or PuTTy
• NEMA 4 rated weather-UV resistant enclosure
• Operating temperature range: -20 C to +50
• 1.25 lbs. 6.5″x 6.5″x 3.7″ without conduit
