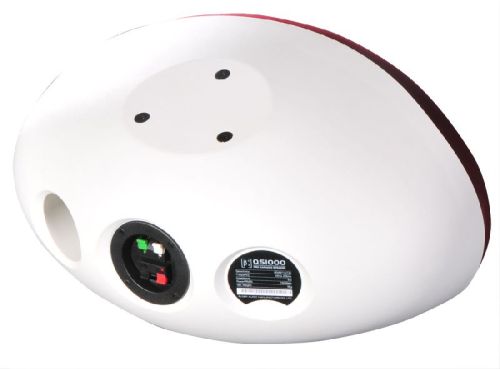

Speaker

QS1000 is 2 way full range speaker with a wide dispersion angle, compact cabinet and modern appearance. The sound
is very natural and clear, it can be used for small and middle size venues, like KTV, multifunction room, monitor, small performance, public address speaker or as sound fill speaker in some big venues.

• 2 x 4 paper cone HF driver, increase the HF performance and power handling capability.
• 1x 10 LF woofer is taken under finite element analysis to optimize magnet circuit and short-circuit ring, to have a lower distortion and maximum definition under high SPL.
• Crossover is using -12dB slope to make frequency response even and smooth.
• The protection circuit makes the speaker more reliable and durable.
• The cabinet is made from high intensity PP,the color for cabinet and grill are various options.
• 3 x M8 mounting points are available for ceiling,wall and stand installation, is optional bracket.

Specifications

Transducers LF: 1—10
HF:2— 4
Frequency response-3dB
(-10dB) 45Hz-20KHz
40Hz-24KHz
Sensitivity(1W/1m)² 90dB
Max.SPL(1m)³ 117dB/123dB(PEAK)
Power 150W (RMS))
300W (MUSIC)
600W (PEAK )
Dispersion(HxV) 120°—120°
Rated impedance: 8 Ohms
Crossover point: Polypropylene injection moulding
Mounting accessories 3—M8 Bracket lifting point
Paintin Cabinet Exterior with/without
polyurethane spraying treatment
(depends on colors)Grill with cloth
Connector Wire clamp
Dimensions (W—H—D) 550mm—316mm—336mm
(21.5in—12.4in—13.2in)
Packaging Dimensions (W—H—D) 620mm—385mm—425mm
(24.4in—15in—16.7in)
Net Weight 9kg(19.8 lb.)
Gross Weight 11kg(24.3 lb.)
