Wood Tech Bangalore Spindle Moulders

Get Latest Price

Sold By : Wood Tech, Bangalore

Send Inquiry

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Features

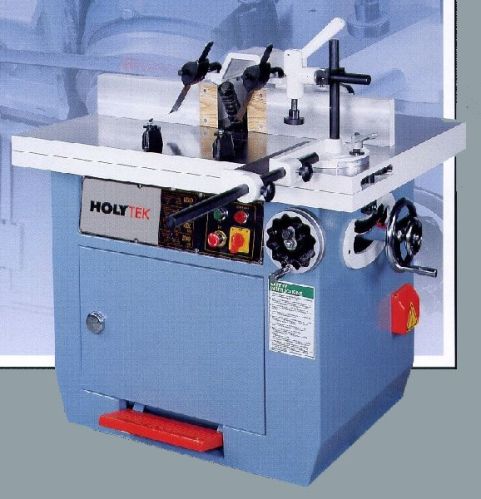

The Holytek spindle shaper delivers precise and vibration free shaping performance powered by a 10HP motor (option), The spindle shaper gives you powerful shaping operations with minimum trouble. There are four models to choose from. Each one is precision built throughout with fine craftsmanship that guarantees smooth and precise shaping at all times.

Model	HS-735TS(Heavy Duty)	HS 625TS
Spindle diameter	1-1/4”, 30 mm., 35 mm., 40 mm.	3/4”, 1”, 1-1/4”, 30 mm., 35 mm.
Spindle speed	3,000 / 4,500 / 7,500 / 10,000 r.p.m.	3,000 / 4,500 / 6,000 / 10,000 r.p.m.
Taper of spindle	MK 5	MK 5
Spindle motor	10 HP	7.5 HP, 10 HP (option)
Spindle travel	180 mm.	5” (130 mm.)
Tilting angle	-5° ~ 90° ~ +45°	-5° ~ 90° ~ +45°
Max. table insert diameter	13-1/4“(336 mm.)	8-1/4” (210 mm.)
Table size	48” x 36-1/2” (1,220 x 930 mm.)	41-3/8” x 31-1/8” (1,050 x 800 mm.)
Table height	35-1/2” (900 mm.)	35-1/2” (900 mm.)
Sliding table size	1220 x 330 mm.	1,050 x 250 mm.
Sliding table travel	46” (470 mm.)	38” (970 mm.)
Packing dimensions	1,070 x 1,070 x 1,270 mm.	1,168 x 1,118 x 1,270 mm.
N.W. / G.W.	750 / 850 kgs.	550 / 630 kgs.

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Retailer Of Door Frame Machines, Auto Panel Saw, High Speed Computer Panel Saw, Sliding Panel Saw, Hydraulic Turning Lathe, Glue Spreaders, Clamp Carriers, Grinding Machines, Boring Machines, Hydraulic Copy Lathe Machine, Turning Groove Machine, Double End Saws, Tilting Arbor Saw, Single End Tenoning Machine, Dust Collectors, Dowel Milling Machines.
