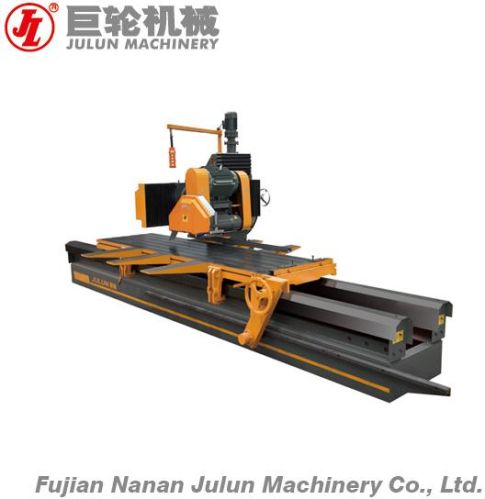

Contact SupplierSQA-600 Granite Small Cutting Machine By Hand uses jointed structure; the main head can rotate 180 degree and electric up and down.The whole machine has compact structure, fine appearance, stable functions and high processing precision, which suit for edge cutting and milling of small slates, lath and thick ties.
Technical Data
Name Unit SQA-600
Max.blade diameter mm Φ600
Max.lifting stroke mm 350
Worktable size mm 3000*750
Max.processing size
mm 2700*1100*1200
Water consumption m3min 3
Power of main motor kw 1518.5
Total power kw 1620
Dimensions(L×W×H) mm 55000*2200*2250
Weight kg 2800
